Fujitsu PRIMERGY CX120 S1 (Intel Xeon L5530) SPECpower_ssj2008 = 2,320 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Multi Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Mar 7, 2010
Hardware Availability: Jun-2010 Software Availability: Nov-2009 Publication: Mar 24, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 6,321 22.4
Calibration 2 6,311 22.4
Calibration 3 6,346 22.5
100% 6,303 22.6
90% 5,910 22.7
80% 5,449 22.7
70% 5,033 22.8
60% 4,650 22.7
50% 4,321 22.7
40% 4,015 22.8
30% 3,721 22.8
20% 3,386 22.7
10% 2,901 22.6
Active Idle 1,842 22.6
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11770806
Connectivity: RS-232
Input Connection: Default (20A)
Calibration Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 09075306
Date of Calibration: 06-Jul-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: PSU of SUT 1-19
Power Analyzer pwr2
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 12370811
Connectivity: RS-232
Input Connection: Default (20A)
Calibration Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 09116246
Date of Calibration: 20-Nov-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: PSU of SUT 20-38
Power Analyzer pwr3
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11210208
Connectivity: RS-232
Input Connection: Default (20A)
Calibration Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 10026886
Date of Calibration: 23-Feb-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: FAN unit and RMU (Rack Monitoring Unit)
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUTs main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 226 250.0 14.4 20.0 0.942 3,061 0.1%
Calibration 2 226 250.0 14.4 20.0 0.942 3,057 0.1%
Calibration 3 226 250.0 14.4 20.0 0.943 3,074 0.1%
100% 226 250.0 14.4 20.0 0.942 3,053 0.1%
90% 226 250.0 13.5 20.0 0.938 2,857 0.1%
80% 226 250.0 12.4 20.0 0.933 2,625 0.1%
70% 226 250.0 11.5 20.0 0.927 2,418 0.1%
60% 226 250.0 10.7 20.0 0.921 2,228 0.1%
50% 226 250.0 9.98 10.0 0.915 2,063 0.1%
40% 226 250.0 9.33 10.0 0.908 1,911 0.1%
30% 226 250.0 8.69 10.0 0.899 1,763 0.1%
20% 226 250.0 7.97 10.0 0.888 1,597 0.1%
10% 226 250.0 6.92 10.0 0.867 1,355 0.1%
Active Idle 226 250.0 4.87 5.0 0.750 827 0.1%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 228 250.0 14.3 20.0 0.943 3,071 0.1%
Calibration 2 228 250.0 14.3 20.0 0.943 3,062 0.1%
Calibration 3 227 250.0 14.4 20.0 0.943 3,081 0.1%
100% 227 250.0 14.3 20.0 0.943 3,059 0.1%
90% 228 250.0 13.4 20.0 0.939 2,863 0.1%
80% 228 250.0 12.4 20.0 0.933 2,633 0.1%
70% 228 250.0 11.5 20.0 0.927 2,426 0.1%
60% 228 250.0 10.7 20.0 0.921 2,233 0.1%
50% 228 250.0 9.94 10.0 0.915 2,070 0.1%
40% 227 250.0 9.30 10.0 0.908 1,918 0.1%
30% 227 250.0 8.65 10.0 0.899 1,768 0.1%
20% 227 250.0 7.95 10.0 0.888 1,603 0.1%
10% 227 250.0 6.89 10.0 0.867 1,359 0.1%
Active Idle 228 250.0 4.86 5.0 0.749 831 0.1%
Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 230 250.0 1.30 2.5 0.635 190 0.2%
Calibration 2 229 250.0 1.31 2.5 0.636 192 0.2%
Calibration 3 229 250.0 1.31 2.5 0.635 190 0.2%
100% 229 250.0 1.31 2.5 0.636 191 0.2%
90% 229 250.0 1.31 2.5 0.634 190 0.2%
80% 229 250.0 1.31 2.5 0.633 190 0.2%
70% 229 250.0 1.30 2.5 0.633 188 0.2%
60% 229 250.0 1.31 2.5 0.633 189 0.2%
50% 229 250.0 1.30 2.5 0.633 189 0.2%
40% 228 250.0 1.29 2.5 0.633 186 0.2%
30% 228 250.0 1.31 2.5 0.632 189 0.2%
20% 228 250.0 1.29 2.5 0.632 186 0.2%
10% 228 250.0 1.30 2.5 0.634 187 0.2%
Active Idle 228 250.0 1.28 2.5 0.631 184 0.2%

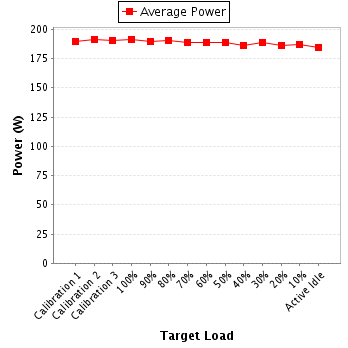

Power details for pwr3
