NEC Corporation Express5800/iR120a-1E | SPECpower_ssj2008 = 1,810 overall ssj_ops/watt | ||||
Test Sponsor: | NEC Corporation | SPEC License #: | 9006 | Test Method: | Single Node |
Tested By: | NEC Corporation | Test Location: | Fuchu, Tokyo, Japan | Test Date: | Oct 28, 2009 |
Hardware Availability: | Dec-2009 | Software Availability: | May-2009 | Publication: | Dec 30, 2009 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

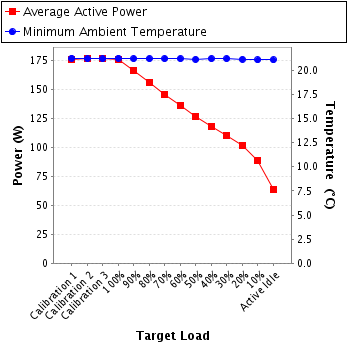

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 176 | 21.2 |
Calibration 2 | 177 | 21.2 |
Calibration 3 | 177 | 21.2 |
100% | 176 | 21.2 |
90% | 166 | 21.2 |
80% | 156 | 21.2 |
70% | 146 | 21.2 |
60% | 136 | 21.2 |
50% | 127 | 21.1 |
40% | 118 | 21.2 |
30% | 110 | 21.2 |
20% | 102 | 21.1 |
10% | 89.1 | 21.1 |
Active Idle | 64.1 | 21.1 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91H928025 |
Connectivity: | RS-232C |
Input Connection: | Default |
Calibration Institute: | JQA |
Accredited by: | JQA |
Calibration Label: | 150-92562 |
Date of Calibration: | 8-Sep-2009 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.3.9-49c8760c |
Setup Description: | None |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.10.26.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | None |

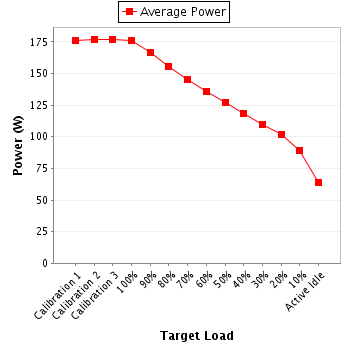

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 205 | 300.0 | 0.905 | 1.0 | 0.950 | 176 | 0.3% |
Calibration 2 | 205 | 300.0 | 0.909 | 1.0 | 0.950 | 177 | 0.3% |
Calibration 3 | 205 | 300.0 | 0.911 | 1.0 | 0.950 | 177 | 0.3% |
100% | 205 | 300.0 | 0.907 | 1.0 | 0.950 | 176 | 0.3% |
90% | 205 | 300.0 | 0.860 | 1.0 | 0.945 | 166 | 0.3% |
80% | 205 | 300.0 | 0.811 | 1.0 | 0.938 | 156 | 0.4% |
70% | 205 | 300.0 | 0.763 | 1.0 | 0.931 | 146 | 0.4% |
60% | 205 | 300.0 | 0.718 | 1.0 | 0.924 | 136 | 0.4% |
50% | 206 | 300.0 | 0.673 | 1.0 | 0.916 | 127 | 0.4% |
40% | 206 | 300.0 | 0.632 | 1.0 | 0.908 | 118 | 0.4% |
30% | 206 | 300.0 | 0.595 | 1.0 | 0.898 | 110 | 0.5% |
20% | 205 | 300.0 | 0.561 | 1.0 | 0.885 | 102 | 0.5% |
10% | 206 | 300.0 | 0.508 | 1.0 | 0.854 | 89.1 | 0.6% |
Active Idle | 206 | 300.0 | 0.390 | 1.0 | 0.799 | 64.1 | 0.7% |
