Acer Incorporated Gateway GW1000-GW170 F1 SPECpower_ssj2008 = 1,588 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: San Jose, CA, USA Test Date: Oct 29, 2009
Hardware Availability: Dec-2009 Software Availability: Jun-2009 Publication: Nov 18, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 384 20.8
Calibration 2 386 20.8
Calibration 3 386 20.8
100% 386 20.8
90% 367 20.8
80% 349 20.9
70% 327 20.9
60% 306 20.9
50% 288 20.9
40% 269 20.9
30% 252 20.9
20% 233 20.9
10% 206 21.0
Active Idle 145 21.1
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H851272
Connectivity: RS232
Input Connection: Default
Calibration Institute: NIST
Accredited by: SE-Laboratories
Calibration Label: C56-0071
Date of Calibration: 15-Jun-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.8-76a9e72a
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 208 300.0 1.89 2.0 0.979 384 0.3%
Calibration 2 208 300.0 1.90 2.0 0.980 386 0.3%
Calibration 3 208 300.0 1.90 2.0 0.980 386 0.3%
100% 208 300.0 1.90 2.0 0.980 386 0.3%
90% 208 300.0 1.81 2.0 0.978 367 0.3%
80% 208 300.0 1.72 2.0 0.976 349 0.3%
70% 208 300.0 1.62 2.0 0.974 327 0.3%
60% 208 300.0 1.52 2.0 0.972 306 0.3%
50% 208 300.0 1.43 2.0 0.970 288 0.4%
40% 208 300.0 1.34 2.0 0.967 269 0.4%
30% 208 300.0 1.26 2.0 0.963 252 0.4%
20% 208 300.0 1.17 2.0 0.958 233 0.4%
10% 208 300.0 1.05 2.0 0.946 206 0.5%
Active Idle 208 300.0 0.755 2.0 0.924 145 0.6%

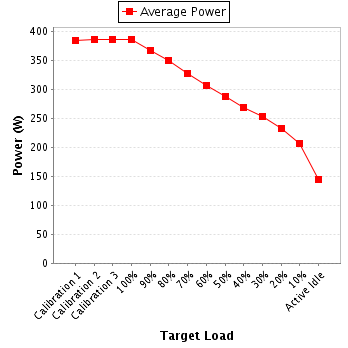

Power details for pwr1
