IBM Corporation System x3200 M3 | SPECpower_ssj2008 = 2,035 overall ssj_ops/watt | ||||
Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
Tested By: | IBM Corporation | Test Location: | NanKang, Taipei, Taiwan | Test Date: | Sep 18, 2009 |
Hardware Availability: | Sep-2009 | Software Availability: | Jun-2009 | Publication: | Oct 8, 2009 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

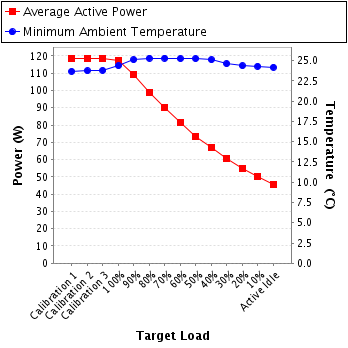

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 118 | 23.7 |
Calibration 2 | 119 | 23.8 |
Calibration 3 | 119 | 23.8 |
100% | 118 | 24.4 |
90% | 110 | 25.1 |
80% | 98.8 | 25.3 |
70% | 90.4 | 25.3 |
60% | 81.2 | 25.2 |
50% | 73.4 | 25.2 |
40% | 67.2 | 25.1 |
30% | 60.4 | 24.6 |
20% | 55.0 | 24.4 |
10% | 50.4 | 24.3 |
Active Idle | 45.8 | 24.2 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. LTD |
Model: | WT210 |
Serial Number: | 91H245649 |
Connectivity: | RS-232 |
Input Connection: | Default |
Calibration Institute: | NML/ROC |
Accredited by: | ETC, Taiwan |
Calibration Label: | 09-04-BAC-150-03 |
Date of Calibration: | 13-Apr-2009 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.3.8-76a9e72a |
Setup Description: | Unknown |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 4.20.0.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | Unknown |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 207 | 300.0 | 0.614 | 1.0 | 0.930 | 118 | 0.4% |
Calibration 2 | 207 | 300.0 | 0.616 | 1.0 | 0.931 | 119 | 0.4% |
Calibration 3 | 207 | 300.0 | 0.615 | 1.0 | 0.931 | 119 | 0.4% |
100% | 207 | 300.0 | 0.610 | 1.0 | 0.930 | 118 | 0.4% |
90% | 207 | 300.0 | 0.574 | 1.0 | 0.921 | 110 | 0.5% |
80% | 207 | 300.0 | 0.527 | 1.0 | 0.904 | 98.8 | 0.5% |
70% | 208 | 300.0 | 0.491 | 1.0 | 0.887 | 90.4 | 0.5% |
60% | 208 | 300.0 | 0.451 | 0.5 | 0.866 | 81.2 | 0.4% |
50% | 208 | 300.0 | 0.418 | 0.5 | 0.847 | 73.4 | 0.4% |
40% | 208 | 300.0 | 0.390 | 0.5 | 0.830 | 67.2 | 0.5% |
30% | 208 | 300.0 | 0.359 | 0.5 | 0.809 | 60.4 | 0.5% |
20% | 208 | 300.0 | 0.335 | 0.5 | 0.788 | 55.0 | 0.5% |
10% | 208 | 300.0 | 0.316 | 0.5 | 0.765 | 50.4 | 0.6% |
Active Idle | 208 | 300.0 | 0.298 | 0.5 | 0.737 | 45.8 | 0.6% |
