Hewlett-Packard Company ProLiant DL360 G6 SPECpower_ssj2008 = 2,013 overall ssj_ops/watt
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Aug 14, 2009
Hardware Availability: Sep-2009 Software Availability: Jul-2009 Publication: Nov 4, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.8% 531,629 186 2,865
90% 91.8% 488,851 177 2,769
80% 80.0% 425,867 163 2,620
70% 70.4% 374,718 153 2,452
60% 60.3% 321,102 142 2,266
50% 49.9% 265,902 133 1,995
40% 39.8% 212,062 125 1,691
30% 30.1% 160,217 117 1,364
20% 20.1% 107,292 109 985
10% 9.8% 52,385 94.6 554
Active Idle 0 62.0 0
∑ssj_ops / ∑power = 2,013

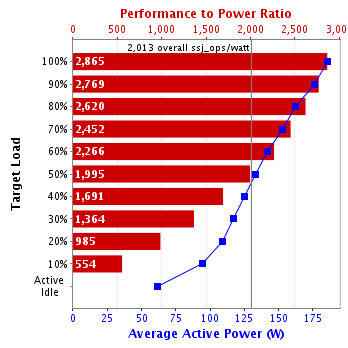

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant DL360 G6 (2.40GHz, Intel Xeon L5530 processor)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL360 G6
Form Factor: 1U
CPU Name: Intel Xeon L5530
CPU Characteristics: Quad-Core, 2.40GHz, 8 MB L3 cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB 2Rx4 PC3-10600E; slots 3 and 6 are populated on each processor
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: HP part #503296-B21
Disk Drive: 1 x 60GB SSD 2.5" SATA; HP part #572071-B21
Disk Controller: HP Smart Array P410i
# and type of Network Interface Cards (NICs) Installed: 2 x NC382i Dual Port Multifunction Gigabit Server Adapters
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced power enabled in OS
Operating System (OS): Microsoft Windows Server 2008 x64, Enterprise Edition
OS Version: SP2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /AFFINITY [0xF, 0xF0, 0xF00, 0xF000]
JVM Instances: 4
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: P64 08/14/2009
Management Firmware Version: 1.79
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: NIC driver, HP component cp010995.exe. Driver version: 5.0.16.0
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
Remote Console Settings - Persistent Keyboard and Mouse Disabled
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL360 G5
CPU Description: Intel Xeon E5440
Memory amount (GB): 1
Software
Operating System (OS): Windows 2003 R2 Enterprise Edition
JVM Vendor: Oracle Corporation
JVM Version: BEA JRockit(R) (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32, compiled mode)
CCS Version: 1.2.4
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GC23225
Connectivity: GPIB
Input Connection: Default
Calibration Institute: NIST
Accredited by: Yokogawa Electric International Pte. Ltd.
Calibration Label: 705418
Date of Calibration: 26-Nov-2008
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.8-76a9e72a
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 4.50.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 186 22.8
90% 177 22.8
80% 163 22.6
70% 153 22.6
60% 142 22.7
50% 133 22.6
40% 125 22.5
30% 117 22.5
20% 109 22.4
10% 94.6 22.3
Active Idle 62.0 22.4
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 22.3 132
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     530,796
Calibration 2     532,793
Calibration 3     532,204
ssj_ops@calibrated=532,499
100% 99.8% 532,499 531,629
90% 91.8% 479,249 488,851
80% 80.0% 425,999 425,867
70% 70.4% 372,749 374,718
60% 60.3% 319,499 321,102
50% 49.9% 266,249 265,902
40% 39.8% 213,000 212,062
30% 30.1% 159,750 160,217
20% 20.1% 106,500 107,292
10% 9.8% 53,250 52,385
Active Idle   0 0
Graph of results
