Hewlett-Packard Company ProLiant SL2x170z G6 (2.4 GHz, Intel Xeon L5530) SPECpower_ssj2008 = 2,316 overall ssj_ops/watt
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Sep 3, 2009
Hardware Availability: Oct-2009 Software Availability: Jul-2009 Publication: Nov 4, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 659 20.4
Calibration 2 665 20.6
Calibration 3 667 20.7
100% 664 20.9
90% 626 20.9
80% 583 20.9
70% 540 20.8
60% 500 20.9
50% 461 20.8
40% 424 20.8
30% 389 20.8
20% 354 20.6
10% 303 20.7
Active Idle 191 20.6
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GB53023
Connectivity: GPIB
Input Connection: Default
Calibration Institute: NIST
Accredited by: Yokogawa Electric International Pte. Ltd.
Calibration Label: 705437
Date of Calibration: 10-Dec-2008
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.8-76a9e72a
Setup Description: Unknown
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 4.50.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Unknown
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 209 300.0 3.26 5.0 0.968 659 0.4%
Calibration 2 209 300.0 3.28 5.0 0.968 665 0.4%
Calibration 3 209 300.0 3.30 5.0 0.969 667 0.4%
100% 211 300.0 3.26 5.0 0.968 664 0.4%
90% 211 300.0 3.07 5.0 0.965 626 0.4%
80% 211 300.0 2.87 5.0 0.962 583 0.4%
70% 211 300.0 2.68 5.0 0.959 540 0.4%
60% 210 300.0 2.50 5.0 0.956 500 0.5%
50% 210 300.0 2.31 5.0 0.951 461 0.5%
40% 210 300.0 2.13 5.0 0.947 424 0.5%
30% 210 300.0 1.97 5.0 0.941 389 0.6%
20% 211 300.0 1.80 2.0 0.933 354 0.3%
10% 211 300.0 1.57 2.0 0.916 303 0.4%
Active Idle 210 300.0 1.04 2.0 0.873 191 0.5%

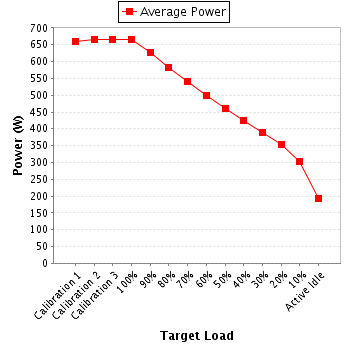

Power details for pwr1
