Plat'Home Cloud Station E ssj_ops@100% = 457,103
ssj_ops@100% per JVM = 228,551
Test Sponsor: Plat'Home SPEC License #: 3835 Test Method: Single Node
Tested By: Plat'Home Test Location: Chiyoda-Ku, Tokyo, Japan Test Date: Jul 22, 2009
Hardware Availability: Aug-2009 Software Availability: Jun-2009 Publication: Oct 21, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     457,476
Calibration 2     462,584
Calibration 3     458,701
ssj_ops@calibrated=460,642
100% 99.2% 460,642 457,103
90% 90.0% 414,578 414,426
80% 80.1% 368,514 369,001
70% 69.9% 322,450 322,148
60% 60.0% 276,385 276,307
50% 49.8% 230,321 229,561
40% 40.1% 184,257 184,785
30% 30.0% 138,193 138,003
20% 20.3% 92,128 93,412
10% 9.9% 46,064 45,707
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Cloud Station E
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Plat'Home
Model: Cloud Station E
Form Factor: 1U
CPU Name: Intel Xeon L5530
CPU Characteristics: Quad-Core, 2.40GHz, 8MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2 GB
Memory Details: DDR3-1333 CL9 Unregistered SDRAM; slots A1 ,B1 ,D1 ,and E1 populated
Power Supply Quantity and Rating (W): 1 x 450
Power Supply Details: 3Y POWER TECHNOLOGY (YM-2451C)
Disk Drive: 1 x 32 GB SSD 2.5" SATA (Intel SSDSA2SH032G1GN)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Network Adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced (see SUT Notes)
Operating System (OS): MicroSoft Windows Server 2008 Enterprise Edition SP2
OS Version: SP2(64-bit)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms2700m -Xmx2700m -Xns2200m -XXthroughputcompaction -XXlazyunlocking -XXaggressive -Xlargepages -Xgc:genpar -XXcallprofiling -XXgcthreads=8 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: start /affinity [00FF,FF00]
JVM Instances: 2
JVM Initial Heap (MB): 2700
JVM Maximum Heap (MB): 2700
JVM Address Bits: 64
Boot Firmware Version: 37
Management Firmware Version: 38
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-ON7QVORBZ7R.001 227,832
WIN-ON7QVORBZ7R.002 229,270
ssj_ops@100% 457,103
ssj_ops@100% per JVM 228,551

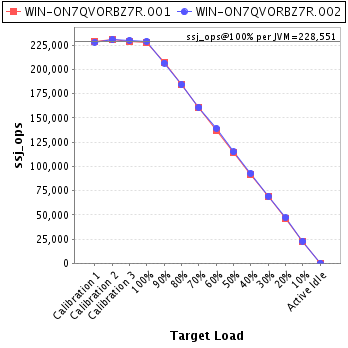

Graph of per-instance results
JVM 'WIN-ON7QVORBZ7R.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     229,055
Calibration 2     231,373
Calibration 3     228,460
ssj_ops@calibrated=229,916
100% 99.1% 229,916 227,832
90% 90.3% 206,925 207,688
80% 80.3% 183,933 184,658
70% 70.1% 160,942 161,281
60% 59.6% 137,950 136,983
50% 49.9% 114,958 114,673
40% 40.0% 91,967 92,020
30% 30.0% 68,975 68,906
20% 20.2% 45,983 46,441
10% 9.9% 22,992 22,816
Active Idle   0 0
Graph of results
JVM 'WIN-ON7QVORBZ7R.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,421
Calibration 2     231,210
Calibration 3     230,241
ssj_ops@calibrated=230,726
100% 99.4% 230,726 229,270
90% 89.6% 207,653 206,739
80% 79.9% 184,581 184,343
70% 69.7% 161,508 160,867
60% 60.4% 138,435 139,325
50% 49.8% 115,363 114,888
40% 40.2% 92,290 92,764
30% 29.9% 69,218 69,096
20% 20.4% 46,145 46,971
10% 9.9% 23,073 22,891
Active Idle   0 0
Graph of results
