Hewlett-Packard Company ProLiant DL385 G6 (2.6GHz, AMD Opteron 2435 processor) ssj_ops@100% = 535,814
ssj_ops@100% per JVM = 267,907
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Aug 11, 2009
Hardware Availability: Aug-2009 Software Availability: Jul-2009 Publication: Aug 26, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     539,898
Calibration 2     538,737
Calibration 3     538,930
ssj_ops@calibrated=538,834
100% 99.4% 538,834 535,814
90% 89.7% 484,950 483,541
80% 80.0% 431,067 431,269
70% 70.1% 377,184 377,831
60% 60.2% 323,300 324,171
50% 50.0% 269,417 269,338
40% 39.7% 215,533 213,708
30% 29.7% 161,650 160,021
20% 20.1% 107,767 108,342
10% 10.0% 53,883 54,143
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant DL385 G6 (2.6GHz, AMD Opteron 2435 processor)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL385 G6 (2.6GHz, AMD Opteron 2435 processor)
Form Factor: 2U
CPU Name: 2.6 GHz AMD Opteron 2435
CPU Characteristics: Six-core, 2.6 GHz, 6MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 12 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: 4GB 2Rx4 PC2-6400P; slots 1 & 2 are populated on each processor
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: HP part # 503296-B21
Disk Drive: 1 x 120GB 5.4K RPM SFF SATA
Disk Controller: Hp Smart Array P410/512
# and type of Network Interface Cards (NICs) Installed: 2 x HP NC382i Dual Port Multifunction Gigabit Server Adapters
NICs Enabled in Firmware / OS / Connected: 4/4/2
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver mode
Operating System (OS): Windows Server 2008 x64, Enterprise Edition
OS Version: SP2
Filesystem: NFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1450m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [3F,FC0]
JVM Instances: 2
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: A22 07/10/2009
Management Firmware Version: 1.79 08/07/2009
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-GKXFR7VVD7O.001 265,806
WIN-GKXFR7VVD7O.002 270,008
ssj_ops@100% 535,814
ssj_ops@100% per JVM 267,907

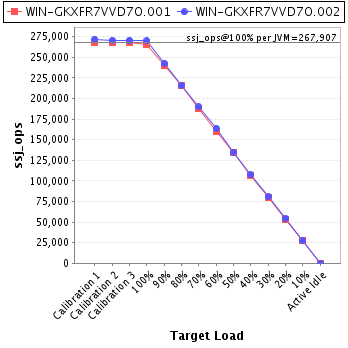

Graph of per-instance results
JVM 'WIN-GKXFR7VVD7O.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     267,760
Calibration 2     267,757
Calibration 3     268,028
ssj_ops@calibrated=267,892
100% 99.2% 267,892 265,806
90% 89.8% 241,103 240,582
80% 80.4% 214,314 215,313
70% 70.2% 187,525 187,999
60% 59.9% 160,735 160,508
50% 50.1% 133,946 134,251
40% 39.7% 107,157 106,389
30% 29.7% 80,368 79,505
20% 20.0% 53,578 53,675
10% 10.1% 26,789 27,048
Active Idle   0 0
Graph of results
JVM 'WIN-GKXFR7VVD7O.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     272,138
Calibration 2     270,980
Calibration 3     270,903
ssj_ops@calibrated=270,941
100% 99.7% 270,941 270,008
90% 89.7% 243,847 242,959
80% 79.7% 216,753 215,956
70% 70.1% 189,659 189,831
60% 60.4% 162,565 163,663
50% 49.9% 135,471 135,088
40% 39.6% 108,376 107,319
30% 29.7% 81,282 80,516
20% 20.2% 54,188 54,667
10% 10.0% 27,094 27,095
Active Idle   0 0
Graph of results
