ZT Systems 1224Ra Datacenter Server SPECpower_ssj2008 = 1,532 overall ssj_ops/watt
Test Sponsor: Advanced Micro Devices SPEC License #: 49 Test Method: Single Node
Tested By: Advanced Micro Devices Test Location: Austin, TX, USA Test Date: Aug 4, 2009
Hardware Availability: Jul-2009 Software Availability: Aug-2009 Publication: Aug 26, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 462,215 218 2,117
90% 89.6% 415,843 206 2,020
80% 79.4% 368,528 193 1,909
70% 70.7% 328,099 181 1,813
60% 59.7% 277,198 165 1,680
50% 49.8% 231,268 151 1,529
40% 40.2% 186,486 138 1,352
30% 29.8% 138,173 124 1,115
20% 20.0% 93,086 111 839
10% 9.9% 46,193 95.3 485
Active Idle 0 80.4 0
∑ssj_ops / ∑power = 1,532

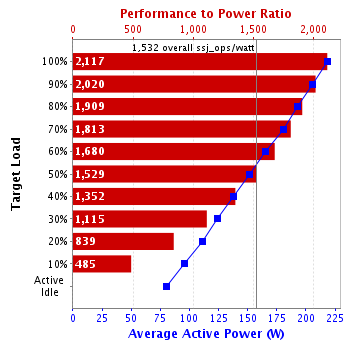

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ZT Systems 1224Ra Datacenter Server 1U
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: ZT Systems
Model: 1224Ra Datacenter Server
Form Factor: 1U
CPU Name: AMD Opteron 2425 HE
CPU Characteristics: Six-Core, 2.1GHz, 6MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 12 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: 4GB 2Rx4 PC2-6400F ECC CL5; slots 1, 2 populated per processor
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: Sparkle Power Inc SPI4601UG
Disk Drive: 1 x 128GB 2.5" Samsung MMCRE28G5MXP-0VB SATA II SSD
Disk Controller: Integrated Nvidia nForce SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Nvidia nForce Networking Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: Direct
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Profile Enabled
Operating System (OS): Microsoft Windows Server 2008 Enterprise Edition
OS Version: SP1 (64-bit)
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5ifx-20090612_37149 (JIT enabled, AOT enabled))
JVM Command-line Options: -Xms1875m -Xmn1400m -Xmx1875m -Xcompressedrefs -Xaggressive -Xgcpolicy:gencon -Xlp -Xnoloa -XlockReservation -XtlhPrefetch
JVM Affinity: start /affinity [03F,FC0]
JVM Instances: 2
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 2.05
Management Firmware Version: None
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes.
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Acer Inc.
Model: Travelmate 4200
CPU Description: Intel T2300
Memory amount (GB): 1
Software
Operating System (OS): Microsoft Windows XP Professional 32-bit
JVM Vendor: Sun Microsystems Inc.
JVM Version: Java(TM) SE Runtime Environment (build 1.6.0_07-b06)
CCS Version: 1.2.4
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. LTD
Model: WT210
Serial Number: 91GB53037
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: Davis Calibration
Calibration Label: 3158212
Date of Calibration: 13-Mar-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.8-76a9e72a
Setup Description: Unknown
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Unknown
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 218 20.9
90% 206 20.9
80% 193 20.9
70% 181 20.9
60% 165 20.9
50% 151 20.9
40% 138 20.9
30% 124 20.9
20% 111 20.9
10% 95.3 20.9
Active Idle 80.4 21.0
Line Standard Minimum Temperature (°C) Elevation (m)
120V / 60 Hz / 1 phase / 2 wires 20.9 168
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     464,228
Calibration 2     464,390
Calibration 3     464,172
ssj_ops@calibrated=464,281
100% 99.6% 464,281 462,215
90% 89.6% 417,853 415,843
80% 79.4% 371,425 368,528
70% 70.7% 324,997 328,099
60% 59.7% 278,569 277,198
50% 49.8% 232,141 231,268
40% 40.2% 185,713 186,486
30% 29.8% 139,284 138,173
20% 20.0% 92,856 93,086
10% 9.9% 46,428 46,193
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
