Hewlett Packard ProLiant DL170h G6 ssj_ops@100% = 443,571
ssj_ops@100% per JVM = 110,893
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Jul 13, 2009
Hardware Availability: Sep-2009 Software Availability: Jun-2009 Publication: Jul 29, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     443,082
Calibration 2     447,798
Calibration 3     445,209
ssj_ops@calibrated=446,503
100% 99.3% 446,503 443,571
90% 90.2% 401,853 402,944
80% 79.4% 357,203 354,622
70% 69.8% 312,552 311,873
60% 59.7% 267,902 266,568
50% 49.7% 223,252 222,044
40% 39.9% 178,601 178,186
30% 30.1% 133,951 134,213
20% 20.2% 89,301 90,220
10% 9.9% 44,650 44,145
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant DL4x170h G6
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Hewlett Packard
Model: ProLiant DL170h G6
Form Factor: 1U
CPU Name: Intel Xeon L5520
CPU Characteristics: Quad-Core, 2.27 GHz, 8 MB L3 Cache
CPU Frequency (MHz): 2267
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 4 x 2 GB 2Rx4 PC3-10600E, slots 2 and 4 are populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 120 GB 2.5" SSD SATA; HP part #572073-B21
Disk Controller: On board SATA
# and type of Network Interface Cards (NICs) Installed: 2 x HP NC362i
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Power saver" power scheme)
Operating System (OS): Windows Server 2008 Enterprise Edition x64
OS Version: SP2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms1600m -Xmx1600m -Xns1500m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: start /affinity [F,F0,F00,F000]
JVM Instances: 4
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: O34 06/08/09
Management Firmware Version: 9.19, 3/18/2009
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT notes
Management Firmware Settings
none
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
Node-4.001 111,256
Node-4.002 111,039
Node-4.003 110,688
Node-4.004 110,587
ssj_ops@100% 443,571
ssj_ops@100% per JVM 110,893

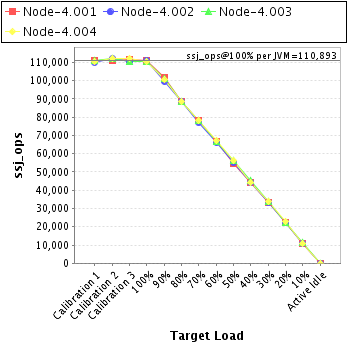

Graph of per-instance results
JVM 'Node-4.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,036
Calibration 2     111,332
Calibration 3     111,787
ssj_ops@calibrated=111,560
100% 99.7% 111,560 111,256
90% 91.0% 100,404 101,496
80% 79.3% 89,248 88,511
70% 70.0% 78,092 78,097
60% 59.8% 66,936 66,683
50% 48.9% 55,780 54,559
40% 39.5% 44,624 44,012
30% 29.9% 33,468 33,410
20% 20.2% 22,312 22,516
10% 9.7% 11,156 10,816
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-4.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,162
Calibration 2     111,912
Calibration 3     110,390
ssj_ops@calibrated=111,151
100% 99.9% 111,151 111,039
90% 89.7% 100,036 99,697
80% 79.8% 88,921 88,740
70% 69.4% 77,806 77,173
60% 59.6% 66,691 66,248
50% 49.7% 55,576 55,226
40% 39.9% 44,461 44,383
30% 29.9% 33,345 33,259
20% 20.0% 22,230 22,266
10% 9.8% 11,115 10,879
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-4.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,256
Calibration 2     112,352
Calibration 3     110,800
ssj_ops@calibrated=111,576
100% 99.2% 111,576 110,688
90% 90.8% 100,418 101,266
80% 79.4% 89,261 88,645
70% 70.1% 78,103 78,207
60% 59.7% 66,946 66,593
50% 50.3% 55,788 56,146
40% 40.7% 44,630 45,416
30% 30.1% 33,473 33,610
20% 20.1% 22,315 22,444
10% 10.4% 11,158 11,641
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-4.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,628
Calibration 2     112,201
Calibration 3     112,232
ssj_ops@calibrated=112,216
100% 98.5% 112,216 110,587
90% 89.5% 100,995 100,486
80% 79.1% 89,773 88,726
70% 69.9% 78,552 78,396
60% 59.7% 67,330 67,044
50% 50.0% 56,108 56,112
40% 39.5% 44,887 44,376
30% 30.2% 33,665 33,934
20% 20.5% 22,443 22,994
10% 9.6% 11,222 10,808
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
