Hewlett-Packard Company ProLiant BL280c G6 ssj_ops@100% = 449,390
ssj_ops@100% per JVM = 112,348
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Jun 25, 2009
Hardware Availability: Aug-2009 Software Availability: Aug-2009 Publication: Jul 15, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     443,911
Calibration 2     448,777
Calibration 3     451,045
ssj_ops@calibrated=449,911
100% 99.9% 449,911 449,390
90% 90.7% 404,920 408,044
80% 80.3% 359,929 361,466
70% 70.2% 314,938 315,618
60% 60.3% 269,947 271,112
50% 49.8% 224,956 224,239
40% 39.7% 179,964 178,835
30% 29.8% 134,973 134,115
20% 20.0% 89,982 90,041
10% 10.1% 44,991 45,268
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant BL280c G6
Form Factor: Blade
CPU Name: Intel Xeon L5520
CPU Characteristics: 2.27GHz, 8 MB L3, 1333 MHz system bus
CPU Frequency (MHz): 2267
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8.0
# and size of DIMM: 4 x 2048 MB
Memory Details: PC3-10600E; Slots 2A and 4B populated on each CPU node
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x NC362i
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2008 x64 Enterprise Edition
OS Version: Service Pack 2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms1650m -Xmx1650m -Xns1500m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: start /affinity [F,F0,F00,F000]
JVM Instances: 4
JVM Initial Heap (MB): 1650
JVM Maximum Heap (MB): 1650
JVM Address Bits: 64
Boot Firmware Version: I22 06/01/2009
Management Firmware Version: 1.77 03/30/2009
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
BL280G6-14.001 111,028
BL280G6-14.002 112,261
BL280G6-14.003 112,670
BL280G6-14.004 113,432
ssj_ops@100% 449,390
ssj_ops@100% per JVM 112,348

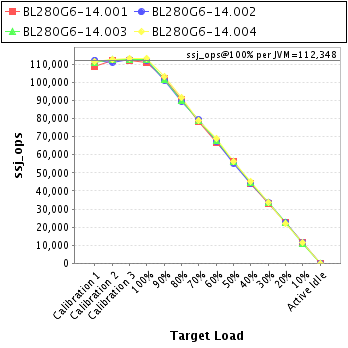

Graph of per-instance results
JVM 'BL280G6-14.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,862
Calibration 2     111,986
Calibration 3     112,308
ssj_ops@calibrated=112,147
100% 99.0% 112,147 111,028
90% 91.1% 100,932 102,172
80% 80.7% 89,718 90,504
70% 69.8% 78,503 78,244
60% 59.7% 67,288 66,981
50% 50.0% 56,074 56,101
40% 39.5% 44,859 44,346
30% 29.5% 33,644 33,078
20% 20.1% 22,429 22,559
10% 10.0% 11,215 11,266
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'BL280G6-14.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,398
Calibration 2     111,311
Calibration 3     112,606
ssj_ops@calibrated=111,959
100% 100.3% 111,959 112,261
90% 90.3% 100,763 101,141
80% 79.9% 89,567 89,462
70% 70.8% 78,371 79,296
60% 60.1% 67,175 67,240
50% 49.5% 55,979 55,399
40% 39.5% 44,783 44,234
30% 29.8% 33,588 33,360
20% 20.1% 22,392 22,495
10% 10.2% 11,196 11,462
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'BL280G6-14.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,987
Calibration 2     112,826
Calibration 3     112,745
ssj_ops@calibrated=112,786
100% 99.9% 112,786 112,670
90% 90.2% 101,507 101,703
80% 79.9% 90,228 90,082
70% 70.0% 78,950 78,949
60% 60.2% 67,671 67,906
50% 50.1% 56,393 56,470
40% 39.8% 45,114 44,922
30% 30.0% 33,836 33,814
20% 20.2% 22,557 22,818
10% 9.9% 11,279 11,162
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'BL280G6-14.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,663
Calibration 2     112,654
Calibration 3     113,385
ssj_ops@calibrated=113,020
100% 100.4% 113,020 113,432
90% 91.2% 101,718 103,028
80% 80.9% 90,416 91,419
70% 70.0% 79,114 79,129
60% 61.0% 67,812 68,985
50% 49.8% 56,510 56,270
40% 40.1% 45,208 45,332
30% 30.0% 33,906 33,863
20% 19.6% 22,604 22,168
10% 10.1% 11,302 11,377
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
