Hewlett-Packard Company ProLiant BL280c G6 ssj_ops@100% = 451,599
ssj_ops@100% per JVM = 112,900
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Jun 25, 2009
Hardware Availability: Aug-2009 Software Availability: Aug-2009 Publication: Jul 15, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     440,349
Calibration 2     452,150
Calibration 3     453,184
ssj_ops@calibrated=452,667
100% 99.8% 452,667 451,599
90% 90.7% 407,401 410,546
80% 80.2% 362,134 363,007
70% 70.1% 316,867 317,351
60% 60.0% 271,600 271,751
50% 49.7% 226,334 224,955
40% 40.1% 181,067 181,606
30% 30.0% 135,800 135,769
20% 19.9% 90,533 90,261
10% 10.1% 45,267 45,554
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant BL280c G6
Form Factor: Blade
CPU Name: Intel Xeon L5520
CPU Characteristics: 2.27GHz, 8 MB L3, 1333 MHz system bus
CPU Frequency (MHz): 2267
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8.0
# and size of DIMM: 4 x 2048 MB
Memory Details: PC3-10600E; Slots 2A and 4B populated on each CPU node
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x NC362i
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2008 x64 Enterprise Edition
OS Version: Service Pack 2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms1650m -Xmx1650m -Xns1500m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: start /affinity [F,F0,F00,F000]
JVM Instances: 4
JVM Initial Heap (MB): 1650
JVM Maximum Heap (MB): 1650
JVM Address Bits: 64
Boot Firmware Version: I22 06/01/2009
Management Firmware Version: 1.77 03/30/2009
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
BL280G6-07.001 112,388
BL280G6-07.002 111,800
BL280G6-07.003 113,790
BL280G6-07.004 113,621
ssj_ops@100% 451,599
ssj_ops@100% per JVM 112,900

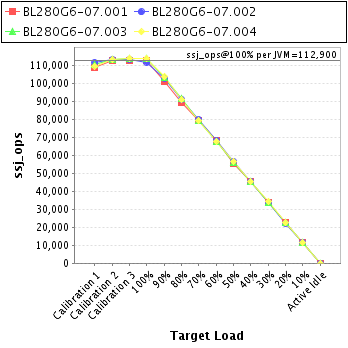

Graph of per-instance results
JVM 'BL280G6-07.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,750
Calibration 2     112,671
Calibration 3     112,638
ssj_ops@calibrated=112,655
100% 99.8% 112,655 112,388
90% 89.7% 101,389 101,105
80% 79.4% 90,124 89,414
70% 70.3% 78,858 79,237
60% 60.3% 67,593 67,933
50% 49.3% 56,327 55,564
40% 40.4% 45,062 45,567
30% 30.2% 33,796 33,985
20% 20.2% 22,531 22,790
10% 10.1% 11,265 11,389
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'BL280G6-07.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,452
Calibration 2     112,983
Calibration 3     113,053
ssj_ops@calibrated=113,018
100% 98.9% 113,018 111,800
90% 91.0% 101,716 102,848
80% 80.7% 90,415 91,170
70% 70.5% 79,113 79,731
60% 60.4% 67,811 68,218
50% 50.0% 56,509 56,549
40% 40.3% 45,207 45,573
30% 29.7% 33,905 33,515
20% 19.7% 22,604 22,320
10% 10.3% 11,302 11,591
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'BL280G6-07.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,585
Calibration 2     113,460
Calibration 3     113,570
ssj_ops@calibrated=113,515
100% 100.2% 113,515 113,790
90% 90.8% 102,164 103,120
80% 80.7% 90,812 91,663
70% 69.8% 79,461 79,235
60% 59.7% 68,109 67,774
50% 49.5% 56,758 56,244
40% 39.8% 45,406 45,207
30% 29.9% 34,055 33,895
20% 20.0% 22,703 22,751
10% 9.9% 11,352 11,279
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'BL280G6-07.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,562
Calibration 2     113,035
Calibration 3     113,924
ssj_ops@calibrated=113,479
100% 100.1% 113,479 113,621
90% 91.2% 102,131 103,473
80% 80.0% 90,783 90,761
70% 69.7% 79,436 79,149
60% 59.8% 68,088 67,826
50% 49.9% 56,740 56,598
40% 39.9% 45,392 45,259
30% 30.3% 34,044 34,373
20% 19.7% 22,696 22,399
10% 10.0% 11,348 11,295
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
