Hewlett-Packard Company ProLiant BL280c G6 ssj_ops@100% = 450,619
ssj_ops@100% per JVM = 112,655
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Jun 25, 2009
Hardware Availability: Aug-2009 Software Availability: Aug-2009 Publication: Jul 15, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     445,725
Calibration 2     449,555
Calibration 3     450,002
ssj_ops@calibrated=449,779
100% 100.2% 449,779 450,619
90% 89.9% 404,801 404,260
80% 79.9% 359,823 359,594
70% 69.9% 314,845 314,543
60% 60.3% 269,867 271,402
50% 49.8% 224,889 224,185
40% 39.7% 179,911 178,785
30% 30.5% 134,934 137,085
20% 19.9% 89,956 89,656
10% 10.1% 44,978 45,299
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant BL280c G6
Form Factor: Blade
CPU Name: Intel Xeon L5520
CPU Characteristics: 2.27GHz, 8 MB L3, 1333 MHz system bus
CPU Frequency (MHz): 2267
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8.0
# and size of DIMM: 4 x 2048 MB
Memory Details: PC3-10600E; Slots 2A and 4B populated on each CPU node
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x NC362i
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2008 x64 Enterprise Edition
OS Version: Service Pack 2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms1650m -Xmx1650m -Xns1500m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: start /affinity [F,F0,F00,F000]
JVM Instances: 4
JVM Initial Heap (MB): 1650
JVM Maximum Heap (MB): 1650
JVM Address Bits: 64
Boot Firmware Version: I22 06/01/2009
Management Firmware Version: 1.77 03/30/2009
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
BL280G6-03.001 113,873
BL280G6-03.002 112,616
BL280G6-03.003 113,131
BL280G6-03.004 111,000
ssj_ops@100% 450,619
ssj_ops@100% per JVM 112,655

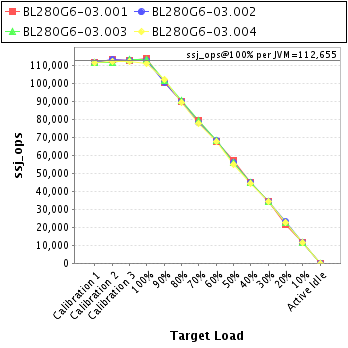

Graph of per-instance results
JVM 'BL280G6-03.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,555
Calibration 2     113,134
Calibration 3     112,367
ssj_ops@calibrated=112,750
100% 101.0% 112,750 113,873
90% 88.9% 101,475 100,216
80% 79.7% 90,200 89,849
70% 70.5% 78,925 79,509
60% 59.9% 67,650 67,584
50% 50.6% 56,375 57,065
40% 39.9% 45,100 44,938
30% 30.6% 33,825 34,475
20% 19.2% 22,550 21,674
10% 10.1% 11,275 11,400
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'BL280G6-03.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,527
Calibration 2     112,863
Calibration 3     112,433
ssj_ops@calibrated=112,648
100% 100.0% 112,648 112,616
90% 89.3% 101,383 100,628
80% 79.7% 90,118 89,787
70% 69.4% 78,854 78,122
60% 60.5% 67,589 68,183
50% 49.8% 56,324 56,065
40% 39.6% 45,059 44,609
30% 30.3% 33,794 34,180
20% 20.4% 22,530 22,949
10% 10.0% 11,265 11,304
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'BL280G6-03.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,378
Calibration 2     111,434
Calibration 3     113,047
ssj_ops@calibrated=112,241
100% 100.8% 112,241 113,131
90% 90.4% 101,017 101,500
80% 80.7% 89,793 90,540
70% 70.5% 78,568 79,158
60% 60.6% 67,344 68,051
50% 49.9% 56,120 56,019
40% 39.9% 44,896 44,799
30% 30.4% 33,672 34,139
20% 20.0% 22,448 22,467
10% 10.1% 11,224 11,325
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'BL280G6-03.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,266
Calibration 2     112,124
Calibration 3     112,156
ssj_ops@calibrated=112,140
100% 99.0% 112,140 111,000
90% 90.9% 100,926 101,916
80% 79.7% 89,712 89,418
70% 69.3% 78,498 77,754
60% 60.3% 67,284 67,583
50% 49.1% 56,070 55,036
40% 39.6% 44,856 44,439
30% 30.6% 33,642 34,291
20% 20.1% 22,428 22,565
10% 10.1% 11,214 11,270
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
