Hewlett-Packard Company ProLiant BL280c G6 ssj_ops@100% = 448,745
ssj_ops@100% per JVM = 112,186
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Jun 25, 2009
Hardware Availability: Aug-2009 Software Availability: Aug-2009 Publication: Jul 15, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     440,172
Calibration 2     448,766
Calibration 3     447,835
ssj_ops@calibrated=448,300
100% 100.1% 448,300 448,745
90% 90.5% 403,470 405,691
80% 79.7% 358,640 357,229
70% 70.0% 313,810 313,895
60% 59.3% 268,980 265,696
50% 49.9% 224,150 223,614
40% 40.0% 179,320 179,160
30% 30.1% 134,490 135,043
20% 19.9% 89,660 89,184
10% 10.1% 44,830 45,390
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant BL280c G6
Form Factor: Blade
CPU Name: Intel Xeon L5520
CPU Characteristics: 2.27GHz, 8 MB L3, 1333 MHz system bus
CPU Frequency (MHz): 2267
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8.0
# and size of DIMM: 4 x 2048 MB
Memory Details: PC3-10600E; Slots 2A and 4B populated on each CPU node
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x NC362i
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2008 x64 Enterprise Edition
OS Version: Service Pack 2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms1650m -Xmx1650m -Xns1500m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: start /affinity [F,F0,F00,F000]
JVM Instances: 4
JVM Initial Heap (MB): 1650
JVM Maximum Heap (MB): 1650
JVM Address Bits: 64
Boot Firmware Version: I22 06/01/2009
Management Firmware Version: 1.77 03/30/2009
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
BL280G6-02.001 112,999
BL280G6-02.002 112,668
BL280G6-02.003 112,962
BL280G6-02.004 110,116
ssj_ops@100% 448,745
ssj_ops@100% per JVM 112,186

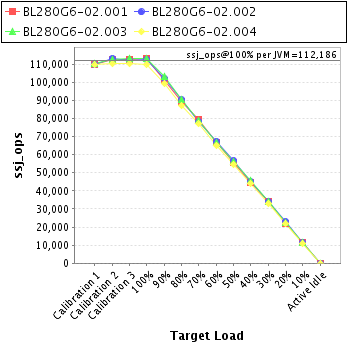

Graph of per-instance results
JVM 'BL280G6-02.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,082
Calibration 2     112,551
Calibration 3     112,425
ssj_ops@calibrated=112,488
100% 100.5% 112,488 112,999
90% 89.6% 101,239 100,799
80% 79.4% 89,990 89,346
70% 70.7% 78,742 79,547
60% 59.1% 67,493 66,536
50% 49.5% 56,244 55,686
40% 39.5% 44,995 44,421
30% 30.1% 33,746 33,893
20% 19.7% 22,498 22,116
10% 10.2% 11,249 11,483
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'BL280G6-02.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,872
Calibration 2     113,274
Calibration 3     111,909
ssj_ops@calibrated=112,591
100% 100.1% 112,591 112,668
90% 90.9% 101,332 102,379
80% 80.2% 90,073 90,265
70% 69.6% 78,814 78,348
60% 59.8% 67,555 67,347
50% 50.4% 56,296 56,734
40% 40.1% 45,036 45,119
30% 30.3% 33,777 34,062
20% 20.4% 22,518 22,999
10% 10.0% 11,259 11,242
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'BL280G6-02.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,618
Calibration 2     112,583
Calibration 3     113,333
ssj_ops@calibrated=112,958
100% 100.0% 112,958 112,962
90% 91.2% 101,662 103,011
80% 80.1% 90,366 90,495
70% 69.9% 79,071 78,925
60% 59.0% 67,775 66,604
50% 50.0% 56,479 56,448
40% 40.4% 45,183 45,586
30% 30.2% 33,887 34,144
20% 19.7% 22,592 22,298
10% 10.3% 11,296 11,662
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'BL280G6-02.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,599
Calibration 2     110,359
Calibration 3     110,167
ssj_ops@calibrated=110,263
100% 99.9% 110,263 110,116
90% 90.2% 99,237 99,503
80% 79.0% 88,210 87,124
70% 69.9% 77,184 77,075
60% 59.1% 66,158 65,209
50% 49.6% 55,132 54,745
40% 39.9% 44,105 44,036
30% 29.9% 33,079 32,945
20% 19.7% 22,053 21,770
10% 10.0% 11,026 11,004
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
