Hewlett-Packard Company ProLiant BL280c G6 ssj_ops@100% = 453,748
ssj_ops@100% per JVM = 113,437
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Jun 25, 2009
Hardware Availability: Aug-2009 Software Availability: Aug-2009 Publication: Jul 15, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     445,264
Calibration 2     454,168
Calibration 3     454,948
ssj_ops@calibrated=454,558
100% 99.8% 454,558 453,748
90% 90.5% 409,102 411,479
80% 79.9% 363,646 362,992
70% 70.2% 318,191 318,918
60% 60.2% 272,735 273,776
50% 50.1% 227,279 227,944
40% 40.2% 181,823 182,663
30% 30.2% 136,367 137,447
20% 20.1% 90,912 91,563
10% 9.9% 45,456 45,175
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant BL280c G6
Form Factor: Blade
CPU Name: Intel Xeon L5520
CPU Characteristics: 2.27GHz, 8 MB L3, 1333 MHz system bus
CPU Frequency (MHz): 2267
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8.0
# and size of DIMM: 4 x 2048 MB
Memory Details: PC3-10600E; Slots 2A and 4B populated on each CPU node
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x NC362i
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2008 x64 Enterprise Edition
OS Version: Service Pack 2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms1650m -Xmx1650m -Xns1500m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: start /affinity [F,F0,F00,F000]
JVM Instances: 4
JVM Initial Heap (MB): 1650
JVM Maximum Heap (MB): 1650
JVM Address Bits: 64
Boot Firmware Version: I22 06/01/2009
Management Firmware Version: 1.77 03/30/2009
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
BL280G6-01.001 111,364
BL280G6-01.002 113,302
BL280G6-01.003 113,913
BL280G6-01.004 115,170
ssj_ops@100% 453,748
ssj_ops@100% per JVM 113,437

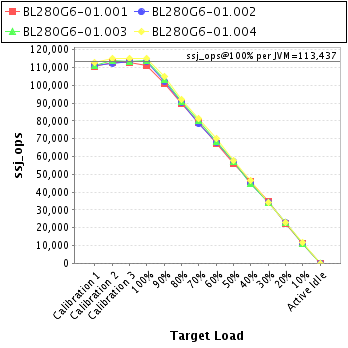

Graph of per-instance results
JVM 'BL280G6-01.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,644
Calibration 2     112,590
Calibration 3     112,764
ssj_ops@calibrated=112,677
100% 98.8% 112,677 111,364
90% 89.5% 101,409 100,878
80% 79.5% 90,142 89,577
70% 70.1% 78,874 79,003
60% 60.0% 67,606 67,566
50% 49.9% 56,339 56,226
40% 40.9% 45,071 46,090
30% 30.6% 33,803 34,464
20% 19.9% 22,535 22,465
10% 10.1% 11,268 11,358
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'BL280G6-01.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,182
Calibration 2     112,487
Calibration 3     113,394
ssj_ops@calibrated=112,941
100% 100.3% 112,941 113,302
90% 90.5% 101,647 102,193
80% 80.1% 90,353 90,445
70% 69.5% 79,058 78,439
60% 60.2% 67,764 67,987
50% 50.5% 56,470 57,060
40% 39.8% 45,176 44,950
30% 30.5% 33,882 34,409
20% 20.2% 22,588 22,803
10% 9.8% 11,294 11,079
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'BL280G6-01.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,911
Calibration 2     113,954
Calibration 3     113,565
ssj_ops@calibrated=113,759
100% 100.1% 113,759 113,913
90% 90.9% 102,383 103,430
80% 79.9% 91,008 90,943
70% 70.6% 79,632 80,333
60% 60.1% 68,256 68,401
50% 50.3% 56,880 57,181
40% 39.6% 45,504 45,002
30% 30.1% 34,128 34,193
20% 20.3% 22,752 23,145
10% 9.8% 11,376 11,152
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'BL280G6-01.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,527
Calibration 2     115,137
Calibration 3     115,224
ssj_ops@calibrated=115,181
100% 100.0% 115,181 115,170
90% 91.1% 103,663 104,977
80% 79.9% 92,144 92,027
70% 70.4% 80,626 81,143
60% 60.6% 69,108 69,822
50% 49.9% 57,590 57,478
40% 40.5% 46,072 46,621
30% 29.9% 34,554 34,382
20% 20.1% 23,036 23,150
10% 10.1% 11,518 11,586
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
