SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant BL280c G6 | SPECpower_ssj2008 = 1,877 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Jun 25, 2009 |
| Hardware Availability: | Aug-2009 | Software Availability: | Aug-2009 | Publication: | Jul 15, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

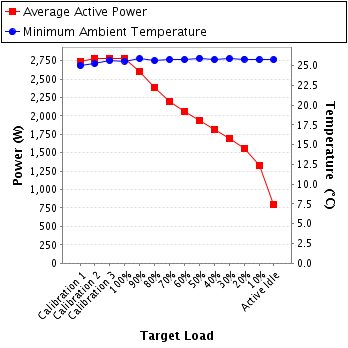

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 2,733 | 25.0 |
| Calibration 2 | 2,772 | 25.2 |
| Calibration 3 | 2,778 | 25.6 |
| 100% | 2,783 | 25.6 |
| 90% | 2,597 | 25.9 |
| 80% | 2,391 | 25.6 |
| 70% | 2,191 | 25.8 |
| 60% | 2,062 | 25.8 |
| 50% | 1,938 | 25.9 |
| 40% | 1,815 | 25.8 |
| 30% | 1,690 | 25.9 |
| 20% | 1,552 | 25.8 |
| 10% | 1,330 | 25.8 |
| Active Idle | 802 | 25.8 |

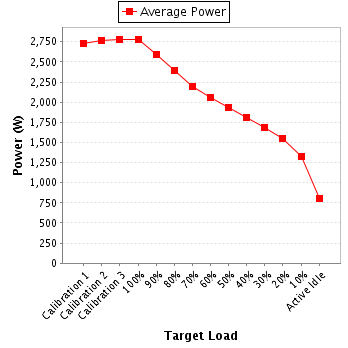

| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GB47168 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 705449 |
| Date of Calibration: | 17-Dec-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.8-76a9e72a |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.50.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 201 | 300.0 | 13.7 | 20.0 | 0.997 | 2,733 | 0.3% |
| Calibration 2 | 203 | 300.0 | 13.7 | 20.0 | 0.997 | 2,772 | 0.3% |
| Calibration 3 | 203 | 300.0 | 13.7 | 20.0 | 0.997 | 2,778 | 0.3% |
| 100% | 203 | 300.0 | 13.8 | 20.0 | 0.997 | 2,783 | 0.3% |
| 90% | 202 | 300.0 | 12.9 | 20.0 | 0.996 | 2,597 | 0.3% |
| 80% | 202 | 300.0 | 11.9 | 20.0 | 0.996 | 2,391 | 0.4% |
| 70% | 202 | 300.0 | 10.9 | 20.0 | 0.995 | 2,191 | 0.4% |
| 60% | 202 | 300.0 | 10.3 | 20.0 | 0.995 | 2,062 | 0.4% |
| 50% | 202 | 300.0 | 9.66 | 20.0 | 0.994 | 1,938 | 0.4% |
| 40% | 202 | 300.0 | 9.05 | 20.0 | 0.993 | 1,815 | 0.5% |
| 30% | 202 | 300.0 | 8.44 | 20.0 | 0.993 | 1,690 | 0.5% |
| 20% | 201 | 300.0 | 7.77 | 20.0 | 0.992 | 1,552 | 0.5% |
| 10% | 201 | 300.0 | 6.69 | 20.0 | 0.989 | 1,330 | 0.6% |
| Active Idle | 203 | 300.0 | 4.04 | 20.0 | 0.979 | 802 | 0.9% |
