Fujitsu PRIMERGY TX100 S1 (Intel Xeon L3360) SPECpower_ssj2008 = 1,500 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Jun 19, 2009
Hardware Availability: Aug-2009 Software Availability: May-2009 Publication: Jul 15, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 93.8 21.6
Calibration 2 94.6 21.7
Calibration 3 94.8 22.1
100% 94.7 22.2
90% 91.2 22.3
80% 85.6 22.3
70% 80.3 22.4
60% 75.5 22.4
50% 70.7 22.5
40% 66.4 22.6
30% 62.0 22.6
20% 57.2 22.6
10% 52.1 22.5
Active Idle 46.2 22.5

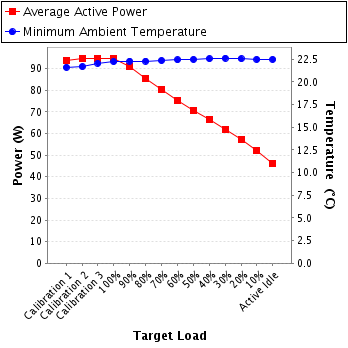

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11780806
Connectivity: RS-232
Input Connection: Default (20A)
Calibration Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: ZES Zimmer Electronic Systems GmbH
Calibration Label: 11780806.1f
Date of Calibration: 25-Jun-2008
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.8-76a9e72a
Setup Description: SUT PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 229 250.0 0.454 0.6 0.904 93.8 0.1%
Calibration 2 228 250.0 0.458 0.6 0.905 94.6 0.1%
Calibration 3 228 250.0 0.459 0.6 0.906 94.8 0.1%
100% 229 250.0 0.458 0.6 0.906 94.7 0.1%
90% 229 250.0 0.442 0.6 0.902 91.2 0.1%
80% 229 250.0 0.417 0.6 0.896 85.6 0.1%
70% 230 250.0 0.394 0.6 0.890 80.3 0.1%
60% 229 250.0 0.372 0.6 0.884 75.5 0.1%
50% 229 250.0 0.351 0.6 0.877 70.7 0.1%
40% 229 250.0 0.333 0.6 0.870 66.4 0.1%
30% 229 250.0 0.314 0.6 0.862 62.0 0.1%
20% 229 250.0 0.293 0.3 0.852 57.2 0.1%
10% 229 250.0 0.270 0.3 0.842 52.1 0.1%
Active Idle 229 250.0 0.242 0.3 0.832 46.2 0.1%

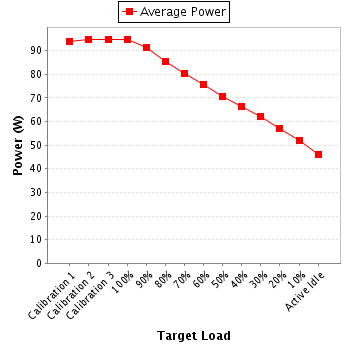

Power details for pwr1
