Dell Inc. PowerEdge R710 (Intel Xeon X5570, 2.93 GHz) ssj_ops@100% = 540,907
ssj_ops@100% per JVM = 270,454
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: May 19, 2009
Hardware Availability: Jun-2009 Software Availability: May-2009 Publication: Jun 3, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     536,484
Calibration 2     541,269
Calibration 3     542,029
ssj_ops@calibrated=541,649
100% 99.9% 541,649 540,907
90% 89.8% 487,484 486,433
80% 79.9% 433,319 432,654
70% 70.3% 379,154 380,573
60% 59.8% 324,989 323,845
50% 49.8% 270,824 269,906
40% 40.1% 216,660 217,270
30% 30.2% 162,495 163,459
20% 19.8% 108,330 107,374
10% 9.8% 54,165 53,085
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R710 (Intel Xeon X5570, 2.93 GHz)
Form Factor: 2U
CPU Name: Intel Xeon X5570
CPU Characteristics: Quad-Core, 2.93GHz, 8MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-8400E ECC ; slots A1-A2 and B1-B2 populated
Power Supply Quantity and Rating (W): 1 x 570
Power Supply Details: Dell SKU 330-3487
Disk Drive: 1 x 50GB SSD 2.5" SATA (Dell SKU 341-8857)
Disk Controller: SAS6iR
# and type of Network Interface Cards (NICs) Installed: 2 x dual-port onboard Broadcom NetXtreme II BCM5709
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver
Operating System (OS): Microsoft Windows 2008 Enterprise x64 Edition
OS Version: SP1 (64-bit)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms3350m -Xmx3350m -Xns2900m -XXaggressive -Xlargepages -Xgc:genpar -XXcallprofiling -XXgcthreads=8 -XXtlasize:min=4k,preferred=1024k
JVM Affinity: start /affinity [00FF,FF00]
JVM Instances: 2
JVM Initial Heap (MB): 3350
JVM Maximum Heap (MB): 3350
JVM Address Bits: 64
Boot Firmware Version: 1.1.4
Management Firmware Version: A00 (April 2009)
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
SPECpower-SUT.001 271,179
SPECpower-SUT.002 269,728
ssj_ops@100% 540,907
ssj_ops@100% per JVM 270,454

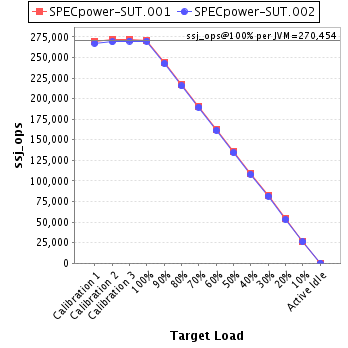

Graph of per-instance results
JVM 'SPECpower-SUT.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     269,272
Calibration 2     272,281
Calibration 3     272,001
ssj_ops@calibrated=272,141
100% 99.6% 272,141 271,179
90% 89.6% 244,927 243,802
80% 79.8% 217,713 217,205
70% 70.2% 190,499 190,973
60% 59.7% 163,285 162,479
50% 49.8% 136,071 135,609
40% 40.2% 108,856 109,266
30% 30.1% 81,642 81,902
20% 19.9% 54,428 54,254
10% 9.9% 27,214 26,983
Active Idle   0 0
Graph of results
JVM 'SPECpower-SUT.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     267,212
Calibration 2     268,988
Calibration 3     270,028
ssj_ops@calibrated=269,508
100% 100.1% 269,508 269,728
90% 90.0% 242,557 242,631
80% 79.9% 215,606 215,449
70% 70.4% 188,655 189,601
60% 59.9% 161,705 161,365
50% 49.8% 134,754 134,297
40% 40.1% 107,803 108,005
30% 30.3% 80,852 81,557
20% 19.7% 53,902 53,119
10% 9.7% 26,951 26,103
Active Idle   0 0
Graph of results
