IBM Corporation IBM System x3650 M2 | ssj_ops@100% = 640,447 ssj_ops@100% per JVM = 160,112 |
||||
Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
Tested By: | IBM Corporation | Test Location: | RTP, NC, USA | Test Date: | May 14, 2009 |
Hardware Availability: | Jun-2009 | Software Availability: | Jun-2009 | Publication: | Jun 3, 2009 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 639,031 | ||
Calibration 2 | 642,885 | ||
Calibration 3 | 642,914 | ||
ssj_ops@calibrated=642,899 | |||
100% | 99.6% | 642,899 | 640,447 |
90% | 89.8% | 578,609 | 577,423 |
80% | 80.0% | 514,319 | 514,248 |
70% | 70.3% | 450,030 | 452,039 |
60% | 60.2% | 385,740 | 387,114 |
50% | 50.0% | 321,450 | 321,225 |
40% | 39.7% | 257,160 | 255,353 |
30% | 30.0% | 192,870 | 192,613 |
20% | 20.1% | 128,580 | 128,950 |
10% | 10.0% | 64,290 | 64,129 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | none |
Hardware | |
---|---|
Hardware Vendor: | IBM Corporation |
Model: | IBM System x3650 M2 |
Form Factor: | 2U |
CPU Name: | Intel Xeon X5570 |
CPU Characteristics: | Quad-Core, 2.93GHz, 8MB L3 Cache |
CPU Frequency (MHz): | 2933 |
CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
Hardware Threads: | 16 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
Tertiary Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 8 |
# and size of DIMM: | 4 x 2048 MB |
Memory Details: | Samsung M393B5673EH1-CH9 DDR3-10600R CL9 ECC; slots 3, 6, 11, and 14 populated |
Power Supply Quantity and Rating (W): | 1 x 675 |
Power Supply Details: | IBM P/N 46M1075 |
Disk Drive: | 1 x 32 GB SATA SSD, IBM Feature code 3747 |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 2 x Integrated Broadcom NetXtreme II Gigabit NIC |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | KVM |
Mouse: | KVM |
Monitor: | KVM |
Optical Drives: | Yes |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled ("Balanced" power scheme) |
Operating System (OS): | Microsoft Windows Server 2008 Enterprise Edition x64 |
OS Version: | SP1 |
Filesystem: | NTFS |
JVM Vendor: | IBM Corporation |
JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvm pwa6460sr5-20090406_01(SR5) (JIT enabled, AOT enabled) |
JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1200m -Xms1675m -Xmx1675m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
JVM Affinity: | start /affinity [0x000F,0x00F0,0x0F00,0xF000] |
JVM Instances: | 4 |
JVM Initial Heap (MB): | 1675 |
JVM Maximum Heap (MB): | 1675 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 22T |
Management Firmware Version: | YU0019E |
Workload Version: | SSJ 1.2.6 |
Director Location: | SUT |
Other Software: | None |
JVM Instance | ssj_ops@100% |
---|---|
WIN-ZAAPQ68IRJT.001 | 161,312 |
WIN-ZAAPQ68IRJT.002 | 159,883 |
WIN-ZAAPQ68IRJT.003 | 159,076 |
WIN-ZAAPQ68IRJT.004 | 160,176 |
ssj_ops@100% | 640,447 |
ssj_ops@100% per JVM | 160,112 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 161,055 | ||
Calibration 2 | 161,889 | ||
Calibration 3 | 161,362 | ||
ssj_ops@calibrated=161,626 | |||
100% | 99.8% | 161,626 | 161,312 |
90% | 90.1% | 145,463 | 145,592 |
80% | 79.7% | 129,300 | 128,880 |
70% | 69.9% | 113,138 | 112,970 |
60% | 59.8% | 96,975 | 96,658 |
50% | 49.6% | 80,813 | 80,169 |
40% | 40.3% | 64,650 | 65,060 |
30% | 30.0% | 48,488 | 48,536 |
20% | 20.2% | 32,325 | 32,653 |
10% | 10.1% | 16,163 | 16,329 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 159,564 | ||
Calibration 2 | 160,198 | ||
Calibration 3 | 160,629 | ||
ssj_ops@calibrated=160,414 | |||
100% | 99.7% | 160,414 | 159,883 |
90% | 89.2% | 144,372 | 143,010 |
80% | 79.5% | 128,331 | 127,502 |
70% | 70.2% | 112,290 | 112,661 |
60% | 60.7% | 96,248 | 97,366 |
50% | 50.0% | 80,207 | 80,235 |
40% | 39.7% | 64,165 | 63,700 |
30% | 29.9% | 48,124 | 47,946 |
20% | 20.2% | 32,083 | 32,395 |
10% | 10.2% | 16,041 | 16,314 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 158,165 | ||
Calibration 2 | 160,131 | ||
Calibration 3 | 160,136 | ||
ssj_ops@calibrated=160,133 | |||
100% | 99.3% | 160,133 | 159,076 |
90% | 90.3% | 144,120 | 144,645 |
80% | 80.2% | 128,107 | 128,378 |
70% | 70.4% | 112,093 | 112,754 |
60% | 60.2% | 96,080 | 96,453 |
50% | 50.4% | 80,067 | 80,709 |
40% | 39.7% | 64,053 | 63,505 |
30% | 29.9% | 48,040 | 47,836 |
20% | 20.0% | 32,027 | 32,020 |
10% | 9.9% | 16,013 | 15,820 |
Active Idle | 0 | 0 |

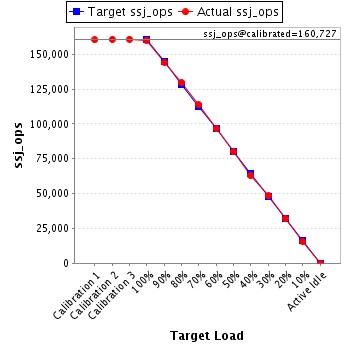

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 160,246 | ||
Calibration 2 | 160,666 | ||
Calibration 3 | 160,787 | ||
ssj_ops@calibrated=160,727 | |||
100% | 99.7% | 160,727 | 160,176 |
90% | 89.7% | 144,654 | 144,176 |
80% | 80.6% | 128,581 | 129,488 |
70% | 70.7% | 112,509 | 113,654 |
60% | 60.1% | 96,436 | 96,637 |
50% | 49.8% | 80,363 | 80,112 |
40% | 39.3% | 64,291 | 63,088 |
30% | 30.0% | 48,218 | 48,295 |
20% | 19.8% | 32,145 | 31,882 |
10% | 9.7% | 16,073 | 15,666 |
Active Idle | 0 | 0 |
