IBM Corporation IBM System x3650 M2 SPECpower_ssj2008 = 1,977 overall ssj_ops/watt
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: RTP, NC, USA Test Date: May 14, 2009
Hardware Availability: Jun-2009 Software Availability: Jun-2009 Publication: Jun 3, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 233 22.7
Calibration 2 237 22.8
Calibration 3 238 22.7
100% 237 22.7
90% 223 22.8
80% 209 22.8
70% 194 22.8
60% 179 22.8
50% 163 22.7
40% 149 22.8
30% 135 22.8
20% 121 22.8
10% 105 22.8
Active Idle 72.5 22.7
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GB51131
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: SIMCO Electronics
Calibration Label: 34441
Date of Calibration: 19-Jan-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.8-76a9e72a
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Unknown
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 204 300.0 1.20 2.0 0.957 233 0.4%
Calibration 2 203 300.0 1.22 2.0 0.958 237 0.4%
Calibration 3 203 300.0 1.22 2.0 0.958 238 0.4%
100% 203 300.0 1.22 2.0 0.958 237 0.4%
90% 204 300.0 1.15 2.0 0.953 223 0.4%
80% 203 300.0 1.08 2.0 0.946 209 0.5%
70% 204 300.0 1.02 2.0 0.938 194 0.5%
60% 203 300.0 0.947 2.0 0.927 179 0.5%
50% 204 300.0 0.877 2.0 0.916 163 0.6%
40% 204 300.0 0.809 2.0 0.902 149 0.6%
30% 204 300.0 0.748 2.0 0.887 135 0.6%
20% 204 300.0 0.686 1.0 0.866 121 0.5%
10% 204 300.0 0.616 1.0 0.834 105 0.5%
Active Idle 204 300.0 0.480 1.0 0.741 72.5 0.7%

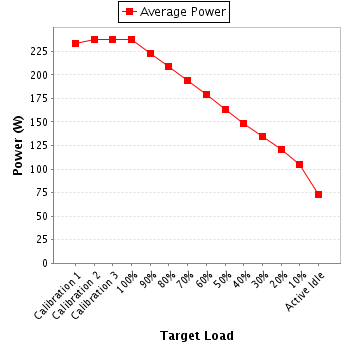

Power details for pwr1
