IBM Corporation IBM System x iDataPlex dx360 M2 ssj_ops@100% = 648,345
ssj_ops@100% per JVM = 162,086
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Multi Node
Tested By: IBM Corporation Test Location: Nankang, Taipei, Taiwan Test Date: May 18, 2009
Hardware Availability: Jun-2009 Software Availability: Jun-2009 Publication: Jun 3, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     649,598
Calibration 2     649,414
Calibration 3     649,067
ssj_ops@calibrated=649,241
100% 99.9% 649,241 648,345
90% 89.6% 584,317 581,496
80% 79.8% 519,392 518,042
70% 69.8% 454,468 453,204
60% 60.0% 389,544 389,555
50% 49.8% 324,620 323,582
40% 39.8% 259,696 258,585
30% 30.1% 194,772 195,507
20% 20.0% 129,848 129,853
10% 10.3% 64,924 66,611
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: none
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x iDataPlex dx360 M2
Form Factor: 2U
CPU Name: Intel Xeon X5570
CPU Characteristics: Quad-Core, 2.93GHz, 8MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: Samsung M393B5673EH1-CH9 DDR3-10600R CL9 ECC; slots 3, 6, 8, 11, 14, and 16 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32 GB SATA SSD, , IBM P/N 43W7691
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated Intel NIC
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Balanced" power scheme)
Operating System (OS): Windows Server 2008 DataCenter
OS Version: 64-bit
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvm pwa6460sr5-20090406_01(SR5) (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1200m -Xms1675m -Xmx1675m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [000F,00F0,0F00,F000]
JVM Instances: 4
JVM Initial Heap (MB): 1675
JVM Maximum Heap (MB): 1675
JVM Address Bits: 64
Boot Firmware Version: 24V
Management Firmware Version: YU0019E
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-VYOUZEST548.001 161,542
WIN-VYOUZEST548.002 158,817
WIN-VYOUZEST548.003 163,885
WIN-VYOUZEST548.004 164,101
ssj_ops@100% 648,345
ssj_ops@100% per JVM 162,086

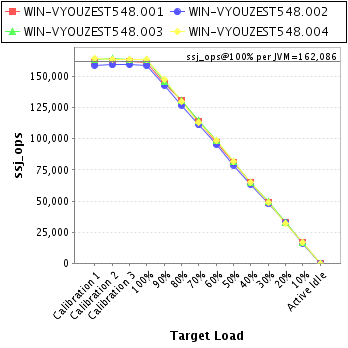

Graph of per-instance results
JVM 'WIN-VYOUZEST548.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     162,181
Calibration 2     161,994
Calibration 3     162,197
ssj_ops@calibrated=162,096
100% 99.7% 162,096 161,542
90% 89.2% 145,886 144,523
80% 80.5% 129,676 130,443
70% 70.2% 113,467 113,833
60% 59.8% 97,257 96,877
50% 49.9% 81,048 80,873
40% 40.2% 64,838 65,111
30% 30.3% 48,629 49,173
20% 20.1% 32,419 32,586
10% 10.2% 16,210 16,571
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VYOUZEST548.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     159,059
Calibration 2     159,349
Calibration 3     159,443
ssj_ops@calibrated=159,396
100% 99.6% 159,396 158,817
90% 89.7% 143,456 142,994
80% 79.7% 127,517 127,040
70% 69.7% 111,577 111,096
60% 59.9% 95,638 95,434
50% 49.5% 79,698 78,939
40% 39.8% 63,758 63,394
30% 30.0% 47,819 47,854
20% 20.4% 31,879 32,452
10% 10.2% 15,940 16,191
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VYOUZEST548.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     163,596
Calibration 2     164,276
Calibration 3     163,961
ssj_ops@calibrated=164,118
100% 99.9% 164,118 163,885
90% 89.2% 147,707 146,351
80% 79.6% 131,295 130,612
70% 70.1% 114,883 115,020
60% 60.2% 98,471 98,781
50% 49.9% 82,059 81,830
40% 39.5% 65,647 64,817
30% 30.1% 49,236 49,382
20% 19.8% 32,824 32,503
10% 10.3% 16,412 16,833
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VYOUZEST548.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,761
Calibration 2     163,795
Calibration 3     163,466
ssj_ops@calibrated=163,631
100% 100.3% 163,631 164,101
90% 90.2% 147,268 147,626
80% 79.4% 130,905 129,948
70% 69.2% 114,542 113,256
60% 60.2% 98,178 98,462
50% 50.1% 81,815 81,939
40% 39.9% 65,452 65,263
30% 30.0% 49,089 49,098
20% 19.7% 32,726 32,312
10% 10.4% 16,363 17,016
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
