IBM Corporation IBM System x3650 M2 | ssj_ops@100% = 617,957 ssj_ops@100% per JVM = 154,489 |
||||
Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
Tested By: | IBM Corporation | Test Location: | RTP, NC, USA | Test Date: | May 14, 2009 |
Hardware Availability: | Jun-2009 | Software Availability: | Jun-2009 | Publication: | May 20, 2009 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 618,775 | ||
Calibration 2 | 620,106 | ||
Calibration 3 | 620,227 | ||
ssj_ops@calibrated=620,167 | |||
100% | 99.6% | 620,167 | 617,957 |
90% | 90.3% | 558,150 | 560,266 |
80% | 80.4% | 496,133 | 498,387 |
70% | 70.2% | 434,117 | 435,441 |
60% | 60.0% | 372,100 | 372,068 |
50% | 50.1% | 310,083 | 310,402 |
40% | 39.9% | 248,067 | 247,578 |
30% | 30.1% | 186,050 | 186,675 |
20% | 20.0% | 124,033 | 124,334 |
10% | 10.0% | 62,017 | 62,296 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | Here is a comment for this set. |
Hardware | |
---|---|
Hardware Vendor: | IBM Corporation |
Model: | IBM System x3650 M2 |
Form Factor: | 2U |
CPU Name: | Intel Xeon X5570 |
CPU Characteristics: | Quad-Core, 2.93GHz, 8MB L3 Cache |
CPU Frequency (MHz): | 2933 |
CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
Hardware Threads: | 16 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
Tertiary Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 8 |
# and size of DIMM: | 4 x 2048 MB |
Memory Details: | Samsung M393B5673EH1-CH9 DDR3-10600R CL9 ECC; slots 3, 6, 11, and 14 populated |
Power Supply Quantity and Rating (W): | 1 x 675 |
Power Supply Details: | IBM P/N 46M1075 |
Disk Drive: | 1 x 32 GB SATA SSD, IBM Feature code 3747 |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 2 x Integrated Broadcom NetXtreme II Gigabit NIC |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | KVM |
Mouse: | KVM |
Monitor: | KVM |
Optical Drives: | Yes |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled ("Balanced" power scheme) |
Operating System (OS): | Microsoft Windows Server 2008 Enterprise Edition x64 |
OS Version: | SP1 |
Filesystem: | NTFS |
JVM Vendor: | IBM Corporation |
JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090326_01(SR5) (JIT enabled, AOT enabled) |
JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1200m -Xms1675m -Xmx1675m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
JVM Affinity: | start /affinity [0x000F,0x00F0,0x0F00,0xF000] |
JVM Instances: | 4 |
JVM Initial Heap (MB): | 1675 |
JVM Maximum Heap (MB): | 1675 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 22T |
Management Firmware Version: | YU0019E |
Workload Version: | SSJ 1.2.6 |
Director Location: | SUT |
Other Software: | None |

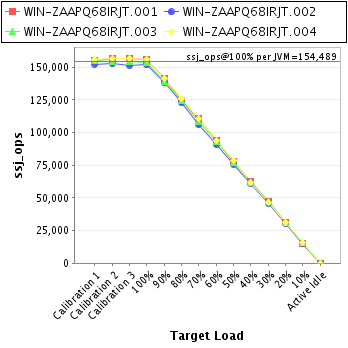

JVM Instance | ssj_ops@100% |
---|---|
WIN-ZAAPQ68IRJT.001 | 155,887 |
WIN-ZAAPQ68IRJT.002 | 151,790 |
WIN-ZAAPQ68IRJT.003 | 154,043 |
WIN-ZAAPQ68IRJT.004 | 156,237 |
ssj_ops@100% | 617,957 |
ssj_ops@100% per JVM | 154,489 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 155,238 | ||
Calibration 2 | 156,604 | ||
Calibration 3 | 156,971 | ||
ssj_ops@calibrated=156,787 | |||
100% | 99.4% | 156,787 | 155,887 |
90% | 90.4% | 141,108 | 141,702 |
80% | 79.7% | 125,430 | 124,891 |
70% | 70.4% | 109,751 | 110,438 |
60% | 60.0% | 94,072 | 94,012 |
50% | 49.8% | 78,394 | 78,081 |
40% | 40.0% | 62,715 | 62,665 |
30% | 30.2% | 47,036 | 47,295 |
20% | 20.0% | 31,357 | 31,327 |
10% | 9.8% | 15,679 | 15,388 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 152,401 | ||
Calibration 2 | 152,721 | ||
Calibration 3 | 151,685 | ||
ssj_ops@calibrated=152,203 | |||
100% | 99.7% | 152,203 | 151,790 |
90% | 90.7% | 136,983 | 138,038 |
80% | 80.7% | 121,762 | 122,782 |
70% | 69.8% | 106,542 | 106,241 |
60% | 59.8% | 91,322 | 91,056 |
50% | 49.8% | 76,101 | 75,846 |
40% | 40.0% | 60,881 | 60,825 |
30% | 30.1% | 45,661 | 45,791 |
20% | 20.1% | 30,441 | 30,624 |
10% | 10.1% | 15,220 | 15,300 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 155,368 | ||
Calibration 2 | 154,360 | ||
Calibration 3 | 154,652 | ||
ssj_ops@calibrated=154,506 | |||
100% | 99.7% | 154,506 | 154,043 |
90% | 89.9% | 139,055 | 138,837 |
80% | 80.6% | 123,605 | 124,558 |
70% | 70.1% | 108,154 | 108,293 |
60% | 60.4% | 92,704 | 93,299 |
50% | 50.2% | 77,253 | 77,494 |
40% | 40.2% | 61,802 | 62,164 |
30% | 30.4% | 46,352 | 46,920 |
20% | 20.0% | 30,901 | 30,895 |
10% | 10.3% | 15,451 | 15,941 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 155,768 | ||
Calibration 2 | 156,422 | ||
Calibration 3 | 156,920 | ||
ssj_ops@calibrated=156,671 | |||
100% | 99.7% | 156,671 | 156,237 |
90% | 90.4% | 141,004 | 141,690 |
80% | 80.5% | 125,336 | 126,156 |
70% | 70.5% | 109,669 | 110,469 |
60% | 59.8% | 94,002 | 93,701 |
50% | 50.4% | 78,335 | 78,981 |
40% | 39.5% | 62,668 | 61,923 |
30% | 29.8% | 47,001 | 46,670 |
20% | 20.1% | 31,334 | 31,488 |
10% | 10.0% | 15,667 | 15,666 |
Active Idle | 0 | 0 |
