SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Verari Systems, Inc. RB1305 | SPECpower_ssj2008 = 1,927 overall ssj_ops/watt | ||||
| Test Sponsor: | Verari Systems, Inc. | SPEC License #: | 2686 | Test Method: | Single Node |
| Tested By: | Verari Systems, Inc. | Test Location: | San Diego, CA, USA | Test Date: | May 4, 2009 |
| Hardware Availability: | Jun-2009 | Software Availability: | Jun-2009 | Publication: | May 20, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

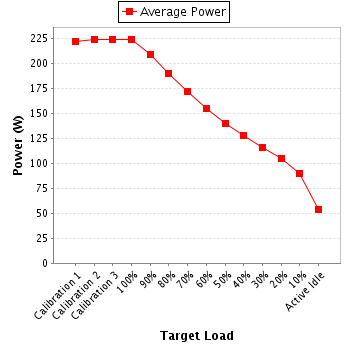

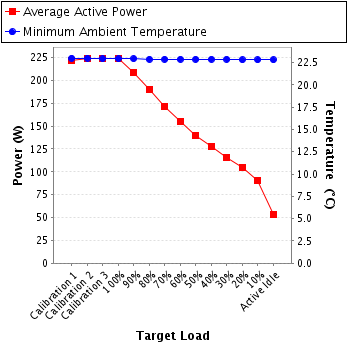

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 222 | 23.0 |
| Calibration 2 | 224 | 23.0 |
| Calibration 3 | 224 | 22.9 |
| 100% | 224 | 22.9 |
| 90% | 209 | 22.9 |
| 80% | 190 | 22.9 |
| 70% | 172 | 22.9 |
| 60% | 155 | 22.9 |
| 50% | 140 | 22.9 |
| 40% | 128 | 22.9 |
| 30% | 116 | 22.9 |
| 20% | 105 | 22.8 |
| 10% | 90.1 | 22.8 |
| Active Idle | 53.7 | 22.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | GW Instek |
| Model: | GPM-8212 |
| Serial Number: | RI1150229 |
| Connectivity: | RS-232 via Prolific USB-to-Serial Converter |
| Input Connection: | Default |
| Calibration Institute: | NML |
| Accredited by: | GW Instek |
| Calibration Label: | RI1150229-05192009 |
| Date of Calibration: | 19-May-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.8-76a9e72a |
| Setup Description: | SUT P/S 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.50 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Unknown |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 203 | 320.0 | 1.14 | 1.28 | 0.957 | 222 | 0.6% |
| Calibration 2 | 204 | 320.0 | 1.14 | 1.28 | 0.957 | 224 | 0.6% |
| Calibration 3 | 204 | 320.0 | 1.15 | 1.28 | 0.957 | 224 | 0.6% |
| 100% | 204 | 320.0 | 1.14 | 1.28 | 0.957 | 224 | 0.6% |
| 90% | 204 | 320.0 | 1.07 | 1.28 | 0.952 | 209 | 0.6% |
| 80% | 204 | 320.0 | 0.987 | 1.28 | 0.943 | 190 | 0.6% |
| 70% | 203 | 320.0 | 0.906 | 1.28 | 0.935 | 172 | 0.7% |
| 60% | 203 | 320.0 | 0.824 | 1.28 | 0.926 | 155 | 0.7% |
| 50% | 203 | 320.0 | 0.750 | 1.28 | 0.915 | 140 | 0.8% |
| 40% | 204 | 320.0 | 0.693 | 1.28 | 0.903 | 128 | 0.8% |
| 30% | 204 | 320.0 | 0.638 | 1.28 | 0.889 | 116 | 0.9% |
| 20% | 204 | 320.0 | 0.587 | 0.64 | 0.872 | 105 | 0.6% |
| 10% | 205 | 320.0 | 0.527 | 0.64 | 0.836 | 90.1 | 0.7% |
| Active Idle | 204 | 320.0 | 0.364 | 0.64 | 0.721 | 53.7 | 1.0% |
