Sun Microsystems, Inc. Sun Netra X4250 SPECpower_ssj2008 = 437 overall ssj_ops/watt
Test Sponsor: Sun Microsystems, Inc. SPEC License #: 6 Test Method: Single Node
Tested By: Sun Microsystems, Inc. Test Location: Burlington, MA, USA Test Date: Apr 20, 2009
Hardware Availability: Jul-2008 Software Availability: May-2009 Publication: May 6, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.2% 229,828 296 777
90% 90.1% 208,601 291 716
80% 79.8% 184,875 286 647
70% 70.1% 162,384 280 580
60% 59.8% 138,548 273 507
50% 49.8% 115,284 267 433
40% 40.1% 92,768 259 358
30% 29.8% 68,959 251 274
20% 19.8% 45,752 243 188
10% 9.9% 22,866 235 97.5
Active Idle 0 225 0
∑ssj_ops / ∑power = 437

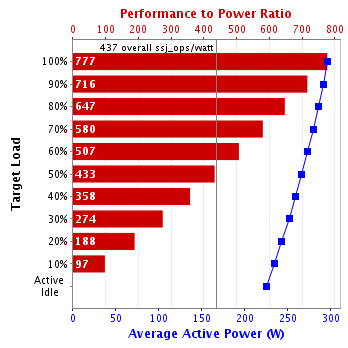

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Sun Netra X4250
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Sun Microsystems, Inc.
Model: Sun Netra X4250
Form Factor: 2U
CPU Name: Intel Xeon L5408
CPU Characteristics: Quad-Core, 2.13 GHz, 2x6MB shared L2 cache, 1066 MHz system bus
CPU Frequency (MHz): 2133
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 8 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 8 x 4096 MB
Memory Details: 4GB 2Rx4 PC2-5300F ECC CL5 (Sun P/N X6382A); slots A0-1,B0-1,C0-1,D0-1 populated
Power Supply Quantity and Rating (W): 2 x 658
Power Supply Details: Sun P/N 300-2015
Disk Drive: 4 x Sun 146GB 10K RPM SAS (Sun P/N 540-7152)
Disk Controller: Integrated SAS controller
# and type of Network Interface Cards (NICs) Installed: 4 x on-board Intel Gigabit Ethernet, Sun x8 PCIe Quad Gigabit Ethernet option card (Sun P/N X4447A-Z)
NICs Enabled in Firmware / OS / Connected: 8/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Server Balanced Processor Power and Performance)
Operating System (OS): Microsoft Windows Server 2003 R2, Enterprise x64 Edition with Service Pack 2
OS Version: Version 5.2 R2 (Build 3790.srv03_sp2_rtm.070216-1710: Service Pack 2) (64 bit)
Filesystem: NTFS
JVM Vendor: Sun Microsystems, Inc.
JVM Version: Java HotSpot(TM) 32-Bit Server VM on Windows version 1.6.0_14
JVM Command-line Options: -server -Xmx1400m -Xms1400m -Xmn1150m -XX:+AggressiveOpts -XX:+UseParallelOldGC -XX:ParallelGCThreads=2 -XX:+UseStringCache -XX:PermSize=12m -XX:MaxPermSize=12m -XX:+UseLargePages -XX:AllocatePrefetchStyle=2 -XX:BiasedLockingStartupDelay=500
JVM Affinity: start /affinity [0x01, 0x10, 0x02, 0x20, 0x04, 0x40, 0x08, 0x80]
JVM Instances: 8
JVM Initial Heap (MB): 1400
JVM Maximum Heap (MB): 1400
JVM Address Bits: 32
Boot Firmware Version: AMIBIOS version 08.00.14
Management Firmware Version: Sun Integrated Lights Out Manager version 2.0.2.6
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: Platform-specific drivers installed from Sun Netra X4250 Tools and Drivers DVD Version 2.1N
Boot Firmware Settings
Default
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Sun Microsystems, Inc.
Model: Sun Fire V20z
CPU Description: AMD Opteron Processor 250
Memory amount (GB): 4
Software
Operating System (OS): SUSE Linux Enterprise Server 10 (x86_64)
JVM Vendor: Sun Microsystems, Inc.
JVM Version: Java HotSpot(TM) 64-bit Server VM (version1.7.0-ea-b18, mixed mode)
CCS Version: 1.2.4
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GC38245
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: Yokogawa Corporation of America
Calibration Label: 09-0488
Date of Calibration: 25-Feb-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.8-b98694b5
Setup Description: SUT Power Supplies 1 and 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: N/A
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm upwind of SUT main intake
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 296 23.7
90% 291 23.7
80% 286 23.6
70% 280 23.7
60% 273 23.6
50% 267 23.9
40% 259 23.9
30% 251 23.9
20% 243 24.0
10% 235 23.9
Active Idle 225 23.9
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 23.6 50
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     232,752
Calibration 2     232,030
Calibration 3     231,219
ssj_ops@calibrated=231,625
100% 99.2% 231,625 229,828
90% 90.1% 208,462 208,601
80% 79.8% 185,300 184,875
70% 70.1% 162,137 162,384
60% 59.8% 138,975 138,548
50% 49.8% 115,812 115,284
40% 40.1% 92,650 92,768
30% 29.8% 69,487 68,959
20% 19.8% 46,325 45,752
10% 9.9% 23,162 22,866
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
