Hewlett-Packard Company ProLiant DL360 G6 (2.93GHz, Intel Xeon processor X5570) SPECpower_ssj2008 = 1,586 overall ssj_ops/watt
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX Test Date: Mar 20, 2009
Hardware Availability: Apr-2009 Software Availability: May-2009 Publication: Apr 23, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 98.9% 533,105 245 2,172
90% 91.1% 491,034 230 2,139
80% 80.1% 431,992 212 2,042
70% 70.0% 377,295 197 1,919
60% 60.4% 325,509 183 1,782
50% 50.0% 269,398 167 1,608
40% 39.8% 214,521 155 1,382
30% 29.9% 161,073 144 1,122
20% 19.8% 106,890 131 813
10% 10.0% 53,694 117 458
Active Idle 0 88.4 0
∑ssj_ops / ∑power = 1,586

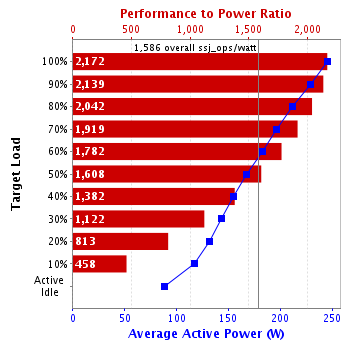

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant DL360 G6 (2.93GHz, Intel Xeon processor X5570)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL360 G6 (2.93GHz, Intel Xeon processor X5570)
Form Factor: --
CPU Name: Intel Xeon X5570
CPU Characteristics: Quad-Core, 2.93GHz, 8MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 GB
Memory Details: PC3-10600E; 4 slots populated
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: HP part # 503296-B21
Disk Drive: 1 x 120GB HP, 1.5G, 5.4 K RPM 2.5" SATA
Disk Controller: HP Smart Array P410i
# and type of Network Interface Cards (NICs) Installed: 2 x NC382i Dual Port Multifunction Gigabit Server Adapters
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver mode
Operating System (OS): Microsoft Windows Server 2008 x64 Enterprise Edition
OS Version: SP 1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-14-111048-1.6.0_05-20090303-1104-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms3350m -Xmx3350m -Xns2900m -XXaggressive -Xlargepages -Xgc:genpar -XXcallprofiling -XXgcthreads=8 -XXtlasize:min=4k,preferred=1024k
JVM Affinity: Used "start /AFFINITY" "0xFF", "0xFF00" CPU masks.
JVM Instances: 4
JVM Initial Heap (MB): 3350
JVM Maximum Heap (MB): 3350
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1.3
Director Location: Controller
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard
Model: ProLiant DL360 G5
CPU Description: Intel Xeon E5440
Memory amount (GB): 1
Software
Operating System (OS): Windows 2003 R2 Enterprise Edition
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32, compiled mode)
CCS Version: 1.1.3
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB
Input Connection: Default
Calibration Institute: NIST
Accredited by: Yokogawa Electric International Pte. Ltd.
Calibration Label: 07-1739
Date of Calibration: 20-Dec-2008
PTDaemon Host System: Controller
PTDaemon Host OS: Controller
PTDaemon Version: 1.3.2-e0c92e60
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 4.50.0.0
Connectivity: USB
PTDaemon Host System: Controller
PTDaemon Host OS: Controller
Setup Description: --
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 245 21.4
90% 230 21.4
80% 212 21.4
70% 197 21.4
60% 183 21.4
50% 167 21.4
40% 155 21.4
30% 144 21.4
20% 131 21.4
10% 117 21.4
Active Idle 88.4 21.4
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 21.4 132
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     530,760
Calibration 2     540,332
Calibration 3     538,111
ssj_ops@calibrated=539,222
100% 98.9% 539,222 533,105
90% 91.1% 485,300 491,034
80% 80.1% 431,377 431,992
70% 70.0% 377,455 377,295
60% 60.4% 323,533 325,509
50% 50.0% 269,611 269,398
40% 39.8% 215,689 214,521
30% 29.9% 161,767 161,073
20% 19.8% 107,844 106,890
10% 10.0% 53,922 53,694
Active Idle   0 0
Graph of results
