IBM Corporation IBM System x3650 M2 SPECpower_ssj2008 = 1,860 overall ssj_ops/watt
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: RTP, NC, USA Test Date: Mar 29, 2009
Hardware Availability: Jun-2009 Software Availability: Jun-2009 Publication: Apr 23, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.5% 620,270 244 2,544
90% 90.0% 560,826 229 2,452
80% 80.1% 499,591 214 2,336
70% 70.4% 438,538 199 2,208
60% 59.8% 372,799 182 2,046
50% 50.1% 312,052 167 1,865
40% 40.0% 249,157 153 1,631
30% 30.1% 187,353 139 1,348
20% 20.0% 124,759 125 997
10% 9.9% 61,878 110 565
Active Idle 0 81.4 0
∑ssj_ops / ∑power = 1,860

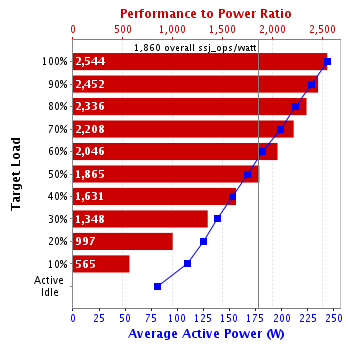

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: IBM System x3650 M2
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x3650 M2
Form Factor: --
CPU Name: Intel Xeon X5570
CPU Characteristics: Quad-Core, 2.93GHz, 8MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: PC3-10600 CL9 ECC; slots 3, 6, 11 and 14 populated
Power Supply Quantity and Rating (W): 1 x 675
Power Supply Details: IBM P/N 39Y7200
Disk Drive: 1 x 32 GB SATA SSD, IBM Feature code 3747
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated Broadcom NetXtreme II Gigabit NIC
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled ("Balanced" power scheme)
Operating System (OS): Microsoft Windows Server 2008 Enterprise Edition
OS Version: SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090326_01(SR5) (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1200m -Xms1675m -Xmx1675m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0F,F0,F00,F000]
JVM Instances: 8
JVM Initial Heap (MB): 1675
JVM Maximum Heap (MB): 1675
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1.3
Director Location: SUT
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Controller System
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x346
CPU Description: Intel Xeon 3.0GHz
Memory amount (GB): 4
Software
Operating System (OS): Microsoft Windows Server 2003 Enterprise Edition SP1
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2003 x86-32 jvmwi3260-20071121_15015 (JIT enabled)
CCS Version: 1.1.3
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GB51133
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: SIMCO Electronics
Calibration Label: 34436
Date of Calibration: 19-Jan-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.2-e0c92e60
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Digiwatchport/H
Driver Version: 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: --
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 244 20.2
90% 229 20.2
80% 214 20.2
70% 199 20.2
60% 182 20.2
50% 167 20.2
40% 153 20.2
30% 139 20.2
20% 125 20.2
10% 110 20.2
Active Idle 81.4 20.2
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 20.2 132
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     622,535
Calibration 2     624,302
Calibration 3     622,412
ssj_ops@calibrated=623,357
100% 99.5% 623,357 620,270
90% 90.0% 561,021 560,826
80% 80.1% 498,686 499,591
70% 70.4% 436,350 438,538
60% 59.8% 374,014 372,799
50% 50.1% 311,678 312,052
40% 40.0% 249,343 249,157
30% 30.1% 187,007 187,353
20% 20.0% 124,671 124,759
10% 9.9% 62,336 61,878
Active Idle   0 0
Graph of results
