SPECpower_ssj2008
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant DL380 G4 (3.8GHz, Intel Xeon processor) | SPECpower_ssj2008 = 45.2 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX | Test Date: | Mar 16, 2009 |
| Hardware Availability: | Sep-2004 | Software Availability: | Oct-2005 | Publication: | Apr 8, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

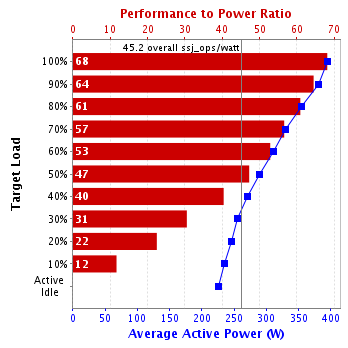

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.0% | 26,880 | 394 | 68.1 |
| 90% | 90.4% | 24,551 | 381 | 64.5 |
| 80% | 79.6% | 21,613 | 355 | 60.9 |
| 70% | 68.9% | 18,701 | 330 | 56.6 |
| 60% | 60.7% | 16,470 | 312 | 52.9 |
| 50% | 50.2% | 13,635 | 289 | 47.2 |
| 40% | 40.3% | 10,947 | 271 | 40.4 |
| 30% | 28.7% | 7,783 | 255 | 30.5 |
| 20% | 20.3% | 5,514 | 245 | 22.5 |
| 10% | 10.1% | 2,750 | 236 | 11.7 |
| Active Idle | 0 | 226 | 0 | |
| ∑ssj_ops / ∑power = | 45.2 | |||
| Set Identifier: | sut |
| Set Description: | ProLiant DL380 G4 (3.8GHz, Intel Xeon processor) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant DL380 G4 (3.8GHz, Intel Xeon processor) |
| Form Factor: | -- |
| CPU Name: | Intel Xeon 3.8GHz |
| CPU Characteristics: | 3.8GHz, 2MB L2, 800MHz system bus |
| CPU Frequency (MHz): | 3800 |
| CPU(s) Enabled: | 2 cores, 2 chips, 1 core/chip |
| Hardware Threads: | 4 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 12 K micro-ops I + 16 KB D on chip per chip |
| Secondary Cache: | 2 MB I+D on chip per chip |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | PC-3200R CL3; slots 1,2,3,4 populated |
| Power Supply Quantity and Rating (W): | 1 x 575 |
| Power Supply Details: | DPS-600PB B |
| Disk Drive: | 1 x 36 GB 15K RPM U320 SCSI |
| Disk Controller: | HP Smart Array 6i |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC7771 |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Server Balanced Processor Power and Performance |
| Operating System (OS): | Microsoft Windows Server 2003 x64 Enterprise Edition |
| OS Version: | SP1 |
| Filesystem: | NTFS |
| JVM Vendor: | Sun Microsystems, Inc. |
| JVM Version: | Java HotSpot(TM) 64-Bit Server VM (build 1.5.0_05-b05, mixed mode) |
| JVM Command-line Options: | -server -XX:+AggressiveHeap -Xmn750m -Xms1500m -Xmx1500m -XX:+UseLargePages -XX:+UseParallelGC -Xss64k |
| JVM Affinity: | None |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 1500 |
| JVM Maximum Heap (MB): | 1500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1.3 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett Packard |
| Model: | ProLiant DL360 G3 |
| CPU Description: | Intel Xeon |
| Memory amount (GB): | 2 |
| Software | |
|---|---|
| Operating System (OS): | Windows XP Professional |
| JVM Vendor: | BEA Systems,Inc. |
| JVM Version: | BEA JRockit(R) (build R27.2.0-131-78843-1.6.0-20070320-1457-windows-ia32, compiled mode) |
| CCS Version: | 1.1.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GB4571 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | HP Metrology |
| Calibration Label: | 705420 |
| Date of Calibration: | 26-Nov-2008 |
| PTDaemon Host System: | Controller |
| PTDaemon Host OS: | Windows XP Professional |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | Controller |
| PTDaemon Host OS: | Windows XP Professional |
| Setup Description: | -- |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 394 | 22.1 |
| 90% | 381 | 22.1 |
| 80% | 355 | 22.1 |
| 70% | 330 | 22.1 |
| 60% | 312 | 22.1 |
| 50% | 289 | 22.1 |
| 40% | 271 | 22.1 |
| 30% | 255 | 22.1 |
| 20% | 245 | 22.1 |
| 10% | 236 | 22.1 |
| Active Idle | 226 | 22.1 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 22.1 | 132 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 27,183 | ||
| Calibration 2 | 27,135 | ||
| Calibration 3 | 27,167 | ||
| ssj_ops@calibrated=27,151 | |||
| 100% | 99.0% | 27,151 | 26,880 |
| 90% | 90.4% | 24,436 | 24,551 |
| 80% | 79.6% | 21,721 | 21,613 |
| 70% | 68.9% | 19,006 | 18,701 |
| 60% | 60.7% | 16,291 | 16,470 |
| 50% | 50.2% | 13,576 | 13,635 |
| 40% | 40.3% | 10,861 | 10,947 |
| 30% | 28.7% | 8,145 | 7,783 |
| 20% | 20.3% | 5,430 | 5,514 |
| 10% | 10.1% | 2,715 | 2,750 |
| Active Idle | 0 | 0 | |
