Hewlett-Packard Company ProLiant DL380 G5 (2.66GHz, Intel Xeon L5430 processor) | ssj_ops@100% = 306,620 ssj_ops@100% per JVM = 76,655 |
||||
Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX | Test Date: | Mar 24, 2009 |
Hardware Availability: | Jun-2008 | Software Availability: | Apr-2008 | Publication: | Apr 8, 2009 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 305,892 | ||
Calibration 2 | 308,631 | ||
Calibration 3 | 308,894 | ||
ssj_ops@calibrated=308,763 | |||
100% | 99.3% | 308,763 | 306,620 |
90% | 90.2% | 277,887 | 278,606 |
80% | 80.3% | 247,010 | 247,903 |
70% | 69.8% | 216,134 | 215,426 |
60% | 60.2% | 185,258 | 185,938 |
50% | 50.0% | 154,381 | 154,251 |
40% | 40.3% | 123,505 | 124,358 |
30% | 30.2% | 92,629 | 93,322 |
20% | 20.1% | 61,753 | 62,003 |
10% | 10.1% | 30,876 | 31,061 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | ProLiant DL380 G5 (2.66GHz, Intel Xeon L5430 processor) |
# of Identical Nodes: | 1 |
Comment: | None |
Software | |
---|---|
Power Management: | HP Dynamic Power Regulator enabled |
Operating System (OS): | Microsoft Windows Server 2003 x64 Enterprise Edition |
OS Version: | R2 |
Filesystem: | NTFS |
JVM Vendor: | BEA Systems,Inc. |
JVM Version: | BEA JRockit(R) (build P27.5.0-5-97156-1.6.0_03-20080403-1524-windows-x86_64, compiled mode) |
JVM Command-line Options: | -Xms3600m -Xmx3600m -Xns3100m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=4k,preferred=512k |
JVM Affinity: | Used "start /AFFINITY" "0x3","0xc","0x30","0xc0" CPU masks. |
JVM Instances: | 8 |
JVM Initial Heap (MB): | 3600 |
JVM Maximum Heap (MB): | 3600 |
JVM Address Bits: | 64 |
Boot Firmware Version: | -- |
Management Firmware Version: | -- |
Workload Version: | SSJ 1.1.3 |
Director Location: | Controller |
Other Software: | None |

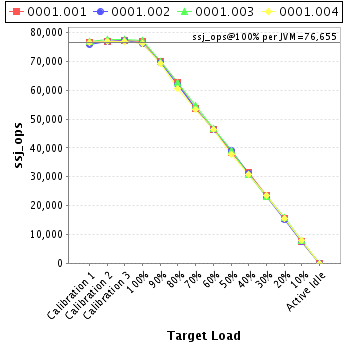

JVM Instance | ssj_ops@100% |
---|---|
0001.001 | 76,988 |
0001.002 | 76,075 |
0001.003 | 77,250 |
0001.004 | 76,306 |
ssj_ops@100% | 306,620 |
ssj_ops@100% per JVM | 76,655 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 76,504 | ||
Calibration 2 | 77,058 | ||
Calibration 3 | 77,150 | ||
ssj_ops@calibrated=77,104 | |||
100% | 99.8% | 77,104 | 76,988 |
90% | 90.6% | 69,394 | 69,866 |
80% | 81.2% | 61,683 | 62,600 |
70% | 69.6% | 53,973 | 53,692 |
60% | 60.3% | 46,262 | 46,486 |
50% | 49.7% | 38,552 | 38,290 |
40% | 40.9% | 30,842 | 31,512 |
30% | 30.4% | 23,131 | 23,413 |
20% | 20.3% | 15,421 | 15,662 |
10% | 9.7% | 7,710 | 7,462 |
Active Idle | 0 | 0 |

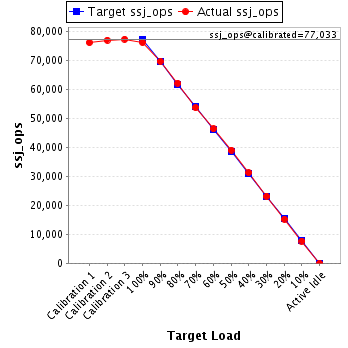

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 75,997 | ||
Calibration 2 | 76,872 | ||
Calibration 3 | 77,194 | ||
ssj_ops@calibrated=77,033 | |||
100% | 98.8% | 77,033 | 76,075 |
90% | 90.4% | 69,329 | 69,608 |
80% | 80.5% | 61,626 | 62,048 |
70% | 69.6% | 53,923 | 53,615 |
60% | 60.1% | 46,220 | 46,280 |
50% | 50.6% | 38,516 | 38,963 |
40% | 40.5% | 30,813 | 31,183 |
30% | 30.0% | 23,110 | 23,133 |
20% | 19.7% | 15,407 | 15,198 |
10% | 9.9% | 7,703 | 7,658 |
Active Idle | 0 | 0 |

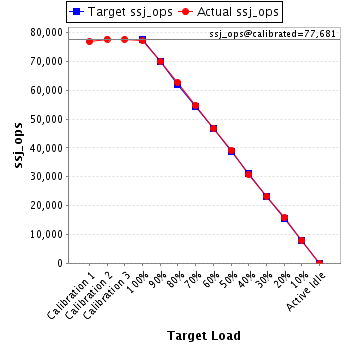

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 76,879 | ||
Calibration 2 | 77,702 | ||
Calibration 3 | 77,661 | ||
ssj_ops@calibrated=77,681 | |||
100% | 99.4% | 77,681 | 77,250 |
90% | 90.0% | 69,913 | 69,897 |
80% | 80.7% | 62,145 | 62,687 |
70% | 70.4% | 54,377 | 54,725 |
60% | 60.2% | 46,609 | 46,786 |
50% | 50.4% | 38,841 | 39,151 |
40% | 39.6% | 31,073 | 30,774 |
30% | 30.0% | 23,304 | 23,292 |
20% | 20.2% | 15,536 | 15,725 |
10% | 10.2% | 7,768 | 7,921 |
Active Idle | 0 | 0 |

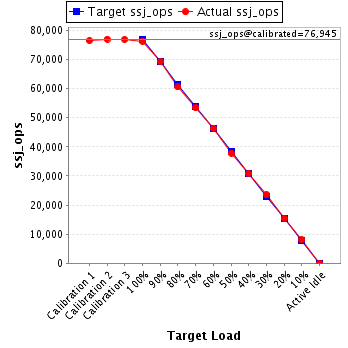

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 76,512 | ||
Calibration 2 | 77,000 | ||
Calibration 3 | 76,890 | ||
ssj_ops@calibrated=76,945 | |||
100% | 99.2% | 76,945 | 76,306 |
90% | 90.0% | 69,250 | 69,236 |
80% | 78.7% | 61,556 | 60,568 |
70% | 69.4% | 53,861 | 53,394 |
60% | 60.3% | 46,167 | 46,387 |
50% | 49.2% | 38,472 | 37,847 |
40% | 40.1% | 30,778 | 30,890 |
30% | 30.5% | 23,083 | 23,483 |
20% | 20.0% | 15,389 | 15,418 |
10% | 10.4% | 7,694 | 8,020 |
Active Idle | 0 | 0 |
