SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R710 (Intel Xeon X5570, 2.93 GHz) | SPECpower_ssj2008 = 1,746 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell | Test Location: | Round Rock, TX, USA | Test Date: | Mar 10, 2009 |
| Hardware Availability: | Mar-2009 | Software Availability: | May-2009 | Publication: | Mar 30, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

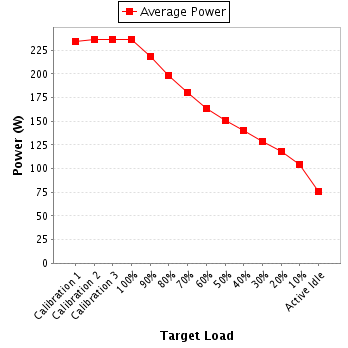

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 234 | 23.8 |
| Calibration 2 | 236 | 23.8 |
| Calibration 3 | 237 | 23.8 |
| 100% | 237 | 23.8 |
| 90% | 218 | 23.8 |
| 80% | 198 | 23.8 |
| 70% | 180 | 23.8 |
| 60% | 164 | 23.8 |
| 50% | 151 | 23.8 |
| 40% | 140 | 23.8 |
| 30% | 129 | 23.8 |
| 20% | 119 | 23.8 |
| 10% | 105 | 23.8 |
| Active Idle | 75.6 | 23.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H648897 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 2565983 |
| Date of Calibration: | 20-Aug-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 204 | 300V | 1.18 | 2A | 0.975 | 234 | -- |
| Calibration 2 | 204 | 300V | 1.19 | 2A | 0.975 | 236 | -- |
| Calibration 3 | 204 | 300V | 1.19 | 2A | 0.975 | 237 | -- |
| 100% | 204 | 300V | 1.19 | 2A | 0.975 | 237 | -- |
| 90% | 204 | 300V | 1.10 | 2A | 0.971 | 218 | -- |
| 80% | 205 | 300V | 1.00 | 2A | 0.966 | 198 | -- |
| 70% | 205 | 300V | 0.917 | 2A | 0.960 | 180 | -- |
| 60% | 204 | 300V | 0.840 | 2A | 0.954 | 164 | -- |
| 50% | 204 | 300V | 0.778 | 2A | 0.947 | 151 | -- |
| 40% | 205 | 300V | 0.729 | 2A | 0.940 | 140 | -- |
| 30% | 205 | 300V | 0.676 | 2A | 0.930 | 129 | -- |
| 20% | 205 | 300V | 0.629 | 2A | 0.919 | 119 | -- |
| 10% | 205 | 300V | 0.566 | 2A | 0.900 | 105 | -- |
| Active Idle | 205 | 300V | 0.429 | 2A | 0.858 | 75.6 | -- |
