Fujitsu PRIMERGY TX300 S4 (Intel Xeon L5430) SPECpower_ssj2008 = 917 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Siemens Computers Test Location: Paderborn, NRW, Germany Test Date: 18.02.2009
Hardware Availability: Sep-2008 Software Availability: May-2009 Publication: Mar 11, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 222 23.1
Calibration 2 221 23.1
Calibration 3 221 23.1
100% 221 23.1
90% 215 23.1
80% 207 23.1
70% 198 23.1
60% 188 23.1
50% 178 23.1
40% 169 23.1
30% 160 23.1
20% 151 23.1
10% 143 22.9
Active Idle 136 22.9

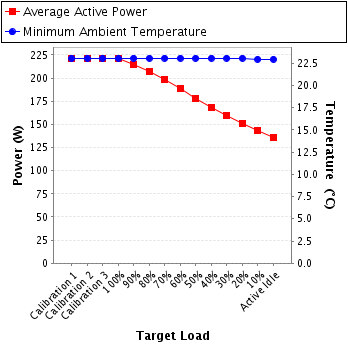

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11780806
Connectivity: RS-232
Input Connection: Default (20A)
Calibration Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: ZES
Calibration Label: 11780806.1f
Date of Calibration: 25-Jun-2008
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.2-e0c92e60
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: --
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 231 250V 1.04 1.20A 0.922 222 --
Calibration 2 231 250V 1.04 1.20A 0.922 221 --
Calibration 3 231 250V 1.04 1.20A 0.920 221 --
100% 232 250V 1.04 1.20A 0.919 221 --
90% 231 250V 1.02 1.20A 0.916 215 --
80% 232 250V 0.985 1.20A 0.909 207 --
70% 232 250V 0.949 1.20A 0.901 198 --
60% 232 250V 0.910 1.20A 0.891 188 --
50% 233 250V 0.870 1.20A 0.881 178 --
40% 233 250V 0.833 1.20A 0.871 169 --
30% 233 250V 0.798 1.20A 0.859 160 --
20% 233 250V 0.767 1.20A 0.847 151 --
10% 233 250V 0.735 1.20A 0.835 143 --
Active Idle 231 250V 0.708 1.20A 0.829 136 --

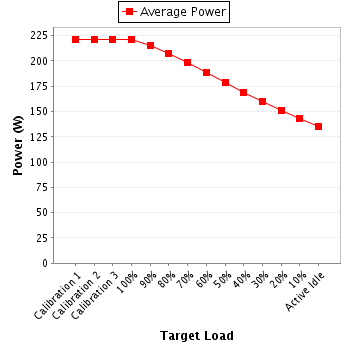

Power details for pwr1
