Fujitsu Siemens Computers PRIMERGY RX100 S5 (Intel Xeon L3360) SPECpower_ssj2008 = 1,116 overall ssj_ops/watt
Test Sponsor: Fujitsu Siemens Computers SPEC License #: 22 Test Method: Single Node
Tested By: Fujitsu Siemens Computers Test Location: Paderborn, NRW, Germany Test Date: 19.02.2009
Hardware Availability: Apr-2009 Software Availability: May-2009 Publication: Mar 11, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 108 23.2
Calibration 2 109 23.2
Calibration 3 109 23.2
100% 109 23.2
90% 106 23.2
80% 103 23.2
70% 99.4 23.2
60% 94.6 23.2
50% 89.5 23.2
40% 83.8 23.2
30% 78.8 23.2
20% 74.5 23.2
10% 69.2 23.2
Active Idle 63.2 23.2

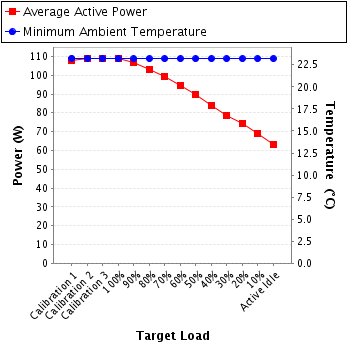

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric Corporation
Model: WT210
Serial Number: 91HA48097
Connectivity: RS-232
Input Connection: Default (20A)
Calibration Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Deutscher Kalibrierdienst
Calibration Label: DKD-K-21901
Date of Calibration: 04-Dec-2008
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.2-e0c92e60
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: --
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 228 300V 0.523 1.0A 0.903 108 --
Calibration 2 227 300V 0.529 1.0A 0.905 109 --
Calibration 3 227 300V 0.530 1.0A 0.905 109 --
100% 227 300V 0.530 1.0A 0.905 109 --
90% 228 300V 0.519 1.0A 0.901 106 --
80% 228 300V 0.506 1.0A 0.895 103 --
70% 228 300V 0.492 1.0A 0.888 99.4 --
60% 228 300V 0.473 1.0A 0.878 94.6 --
50% 228 300V 0.452 1.0A 0.869 89.5 --
40% 228 300V 0.428 1.0A 0.858 83.8 --
30% 229 300V 0.408 1.0A 0.845 78.8 --
20% 229 300V 0.392 1.0A 0.830 74.5 --
10% 228 300V 0.371 1.0A 0.818 69.2 --
Active Idle 228 300V 0.336 1.0A 0.825 63.2 --

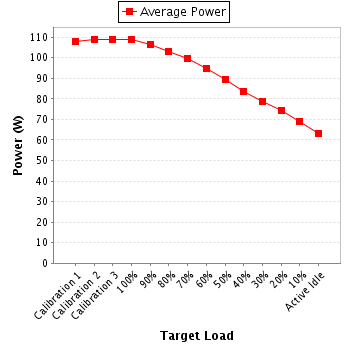

Power details for pwr1
