Fujitsu PRIMERGY TX150 S6 (Intel Xeon L3360) SPECpower_ssj2008 = 1,271 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Siemens Computers Test Location: Paderborn, NRW, Germany Test Date: 13.02.2009
Hardware Availability: Apr-2009 Software Availability: May-2009 Publication: Mar 11, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 196,734 98.4 1,999
90% 90.5% 178,804 96.0 1,863
80% 79.7% 157,486 92.5 1,703
70% 70.0% 138,284 88.7 1,560
60% 59.4% 117,367 83.7 1,402
50% 50.2% 99,155 79.0 1,255
40% 39.7% 78,380 73.2 1,070
30% 30.2% 59,757 68.7 870
20% 20.0% 39,552 63.7 620
10% 10.0% 19,768 58.3 339
Active Idle 0 51.7 0
∑ssj_ops / ∑power = 1,271

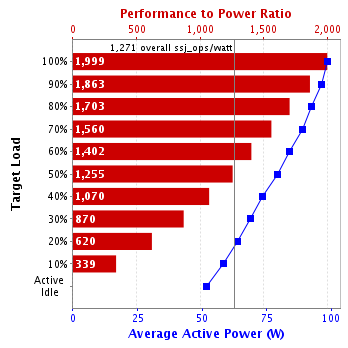

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: PRIMERGY TX150 S6 (Intel Xeon L3360)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY TX150 S6 (Intel Xeon L3360)
Form Factor: --
CPU Name: Intel Xeon L3360
CPU Characteristics: 2.83GHz, 2x6MB L2 cache, 1333MHz system bus
CPU Frequency (MHz): 2833
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 4 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 4
# and size of DIMM: 2 x 2048 MB
Memory Details: 2GB 2Rx8 PC2-6400E ECC CL6; slots 1A, 1B populated
Power Supply Quantity and Rating (W): 1 x 350
Power Supply Details: HIPRO HP-U3528F1
Disk Drive: 1 x Seagate (3.5", SATA, 250GB, 7.2krpm)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom NetXtreme Gigabit Ethernet (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Balanced" power scheme)
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition + SP2
OS Version: Version 6.0.6002 Service Pack 2, v.641 Build 6002
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-8-109238-1.6.0_05-20090130-1408-windows-x86_64)
JVM Command-line Options: -Xms1625m -Xmx1625m -Xns1400m -XXaggressive -Xlargepages -Xgc:genpar -XXcallprofiling -XXgcthreads=2 -XXtlasize:min=4k,preferred=1024k -XXthroughputcompaction -XX:+UseStringCache
JVM Affinity: start /affinity [0x3,0xC]
JVM Instances: 4
JVM Initial Heap (MB): 1625
JVM Maximum Heap (MB): 1625
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1.3
Director Location: Controller
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX100 S3
CPU Description: Pentium D 940
Memory amount (GB): 2
Software
Operating System (OS): Windows Server 2003 Enterprise Edition + SP1
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) R27.6.0 (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32)
CCS Version: 1.1.3
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric Corporation
Model: WT210
Serial Number: 91HA48097
Connectivity: RS-232
Input Connection: Default (20A)
Calibration Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Deutscher Kalibrierdienst
Calibration Label: DKD-K-21901
Date of Calibration: 04-Dec-2008
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.2-e0c92e60
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: --
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 98.4 22.5
90% 96.0 22.5
80% 92.5 22.5
70% 88.7 22.5
60% 83.7 22.4
50% 79.0 22.4
40% 73.2 22.4
30% 68.7 22.4
20% 63.7 22.4
10% 58.3 22.4
Active Idle 51.7 22.4
Line Standard Minimum Temperature (°C) Elevation (m)
230V / 50 Hz / 1 phase / 2 wires 22.4 117
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     199,611
Calibration 2     198,004
Calibration 3     197,186
ssj_ops@calibrated=197,595
100% 99.6% 197,595 196,734
90% 90.5% 177,836 178,804
80% 79.7% 158,076 157,486
70% 70.0% 138,317 138,284
60% 59.4% 118,557 117,367
50% 50.2% 98,798 99,155
40% 39.7% 79,038 78,380
30% 30.2% 59,279 59,757
20% 20.0% 39,519 39,552
10% 10.0% 19,760 19,768
Active Idle   0 0
Graph of results
