Fujitsu Siemens Computers PRIMERGY TX150 S6 (Intel Xeon L3360) SPECpower_ssj2008 = 1,273 overall ssj_ops/watt
Test Sponsor: Fujitsu Siemens Computers SPEC License #: 22 Test Method: Single Node
Tested By: Fujitsu Siemens Computers Test Location: Paderborn, NRW, Germany Test Date: 14.02.2009
Hardware Availability: Apr-2009 Software Availability: May-2009 Publication: Mar 11, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.5% 196,515 98.4 1,997
90% 90.0% 177,834 95.8 1,857
80% 80.1% 158,214 92.6 1,709
70% 69.5% 137,311 88.5 1,551
60% 60.3% 119,008 84.2 1,414
50% 50.0% 98,839 78.8 1,254
40% 41.0% 80,887 74.0 1,094
30% 30.3% 59,747 68.7 870
20% 20.1% 39,624 63.8 621
10% 10.1% 19,900 58.3 341
Active Idle 0 51.8 0
∑ssj_ops / ∑power = 1,273

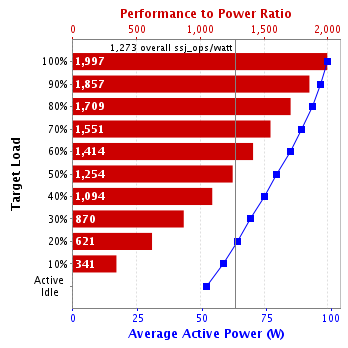

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: PRIMERGY TX150 S6 (Intel Xeon L3360)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Fujitsu Siemens Computers
Model: PRIMERGY TX150 S6 (Intel Xeon L3360)
Form Factor: --
CPU Name: Intel Xeon L3360
CPU Characteristics: 2.83GHz, 2x6MB L2 cache, 1333MHz system bus
CPU Frequency (MHz): 2833
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 4 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 4
# and size of DIMM: 2 x 2048 MB
Memory Details: 2GB 2Rx8 PC2-6400E ECC CL6; slots 1A, 1B populated
Power Supply Quantity and Rating (W): 1 x 350
Power Supply Details: HIPRO HP-U3528F1
Disk Drive: 1 x Seagate (3.5", SATA, 250GB, 7.2krpm)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom NetXtreme Gigabit Ethernet (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Balanced" power scheme)
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition + SP2
OS Version: Version 6.0.6002 Service Pack 2, v.641 Build 6002
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-8-109238-1.6.0_05-20090130-1408-windows-x86_64)
JVM Command-line Options: -Xms1625m -Xmx1625m -Xns1400m -XXaggressive -Xlargepages -Xgc:genpar -XXcallprofiling -XXgcthreads=2 -XXtlasize:min=4k,preferred=1024k -XXthroughputcompaction -XX:+UseStringCache
JVM Affinity: start /affinity [0x3,0xC]
JVM Instances: 4
JVM Initial Heap (MB): 1625
JVM Maximum Heap (MB): 1625
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1.3
Director Location: Controller
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Fujitsu Siemens Computers
Model: PRIMERGY RX100 S3
CPU Description: Pentium D 940
Memory amount (GB): 2
Software
Operating System (OS): Windows Server 2003 Enterprise Edition + SP1
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) R27.6.0 (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32)
CCS Version: 1.1.3
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric Corporation
Model: WT210
Serial Number: 91HA48097
Connectivity: RS-232
Input Connection: Default (20A)
Calibration Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Deutscher Kalibrierdienst
Calibration Label: DKD-K-21901
Date of Calibration: 04-Dec-2008
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.2-e0c92e60
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: --
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 98.4 21.8
90% 95.8 21.8
80% 92.6 21.8
70% 88.5 21.8
60% 84.2 21.8
50% 78.8 21.8
40% 74.0 21.8
30% 68.7 21.8
20% 63.8 21.8
10% 58.3 21.8
Active Idle 51.8 21.8
Line Standard Minimum Temperature (°C) Elevation (m)
230V / 50 Hz / 1 phase / 2 wires 21.8 117
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     199,355
Calibration 2     197,692
Calibration 3     197,302
ssj_ops@calibrated=197,497
100% 99.5% 197,497 196,515
90% 90.0% 177,747 177,834
80% 80.1% 157,998 158,214
70% 69.5% 138,248 137,311
60% 60.3% 118,498 119,008
50% 50.0% 98,749 98,839
40% 41.0% 78,999 80,887
30% 30.3% 59,249 59,747
20% 20.1% 39,499 39,624
10% 10.1% 19,750 19,900
Active Idle   0 0
