SPECpower_ssj2008
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| ASUSTeK Computer Inc. ASUS RS100-E5 (Intel Xeon X3360 Processor, 2.83 GHz) | SPECpower_ssj2008 = 905 overall ssj_ops/watt | ||||
| Test Sponsor: | ASUSTeK Company Inc. | SPEC License #: | 9016 | Test Method: | Single Node |
| Tested By: | ASUSTeK Company Inc. | Test Location: | Taipei, Taiwan R.O.C. | Test Date: | Dec 8, 2008 |
| Hardware Availability: | Apr-2008 | Software Availability: | Mar-2008 | Publication: | Jan 2, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

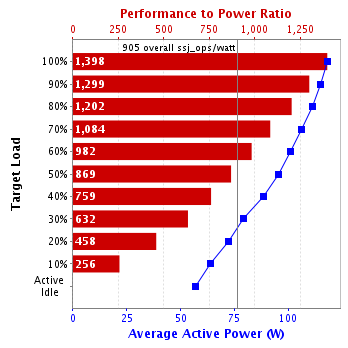

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.6% | 165,064 | 118 | 1,398 |
| 90% | 90.1% | 149,393 | 115 | 1,299 |
| 80% | 80.7% | 133,797 | 111 | 1,202 |
| 70% | 69.5% | 115,123 | 106 | 1,084 |
| 60% | 59.9% | 99,215 | 101 | 982 |
| 50% | 50.0% | 82,814 | 95.3 | 869 |
| 40% | 40.6% | 67,254 | 88.6 | 759 |
| 30% | 30.2% | 50,013 | 79.1 | 632 |
| 20% | 19.9% | 33,046 | 72.2 | 458 |
| 10% | 9.9% | 16,358 | 64.0 | 256 |
| Active Idle | 0 | 56.7 | 0 | |
| ∑ssj_ops / ∑power = | 905 | |||
| Set Identifier: | sut |
| Set Description: | ASUS RS100-E5 (Intel Xeon X3360 Processor, 2.83 GHz) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | ASUSTeK Computer Inc. |
| Model: | ASUS RS100-E5 (Intel Xeon X3360 Processor, 2.83 GHz) |
| Form Factor: | -- |
| CPU Name: | Intel Xeon X3360 Processor |
| CPU Characteristics: | 2.83 GHz, 2 x 6 MB L2 Cache, 1333 MHz System Bus |
| CPU Frequency (MHz): | 2833 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 4 (1 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 4 |
| # and size of DIMM: | 2 x 2048 MB |
| Memory Details: | DDR2-667 CL5 DIMM; Slots A2 and B2 are populated |
| Power Supply Quantity and Rating (W): | 1 x 220 |
| Power Supply Details: | FSP FSP220-60LE |
| Disk Drive: | 1 x Seagate (3.5", SATA, 160 GB, 7.2K RPM) |
| Disk Controller: | Integrated ICH-7R SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Broadcom BCM5721 Gigabit Ethernet controllers (onboard) |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (Server Balanced Power and Performance) |
| Operating System (OS): | Windows Server 2003 R2, Enterprise x64 Edition |
| OS Version: | Service Pack 2 Build 3790 |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | BEA JRockit(R) (build R27.5.0-110-94909-1.6.0_03-20080204-1558-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms1650m -Xmx1650m -Xns1500m -XXaggressive -XXlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=4k,preferred=512k -XXthroughputcompaction |
| JVM Affinity: | start /affinity [0x3,0xc] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1650 |
| JVM Maximum Heap (MB): | 1650 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1.3 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | ASUSTeK Computer Inc. |
| Model: | RS120-E3 |
| CPU Description: | Intel Pentium D 920 Processor |
| Memory amount (GB): | 1 |
| Software | |
|---|---|
| Operating System (OS): | Windows Server 2003 R2, Enterprise Edition with SP2 |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit(R) (build R27.5.0-110-94909-1.6.0_03-20080204-1558-windows-ia32, compiled mode) |
| CCS Version: | 1.1.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91G541516 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | ETC,TAIWAN |
| Accredited by: | ETC,TAIWAN |
| Calibration Label: | 08-05-BAC-358-03 |
| Date of Calibration: | 22-May-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.50.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 118 | 22.8 |
| 90% | 115 | 22.8 |
| 80% | 111 | 22.8 |
| 70% | 106 | 22.8 |
| 60% | 101 | 22.8 |
| 50% | 95.3 | 22.8 |
| 40% | 88.6 | 22.8 |
| 30% | 79.1 | 22.8 |
| 20% | 72.2 | 22.8 |
| 10% | 64.0 | 22.8 |
| Active Idle | 56.7 | 22.8 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 220V / 60 Hz / 1 phase / 2 wires | 22.8 | 18 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 156,905 | ||
| Calibration 2 | 165,323 | ||
| Calibration 3 | 166,178 | ||
| ssj_ops@calibrated=165,750 | |||
| 100% | 99.6% | 165,750 | 165,064 |
| 90% | 90.1% | 149,175 | 149,393 |
| 80% | 80.7% | 132,600 | 133,797 |
| 70% | 69.5% | 116,025 | 115,123 |
| 60% | 59.9% | 99,450 | 99,215 |
| 50% | 50.0% | 82,875 | 82,814 |
| 40% | 40.6% | 66,300 | 67,254 |
| 30% | 30.2% | 49,725 | 50,013 |
| 20% | 19.9% | 33,150 | 33,046 |
| 10% | 9.9% | 16,575 | 16,358 |
| Active Idle | 0 | 0 | |
