ASUSTeK Computer Inc. ASUS RS160-E5 (Intel Xeon L5430 Processor, 2.66 GHz) SPECpower_ssj2008 = 1,020 overall ssj_ops/watt
Test Sponsor: ASUSTeK Company Inc. SPEC License #: 9016 Test Method: Single Node
Tested By: ASUSTeK Company Inc. Test Location: Taipei, Taiwan R.O.C. Test Date: Oct 27, 2008
Hardware Availability: Oct-2008 Software Availability: Sep-2008 Publication: Nov 20, 2008
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 170 22.4
Calibration 2 172 22.4
Calibration 3 172 22.4
100% 173 22.4
90% 168 22.4
80% 163 22.4
70% 157 22.4
60% 150 22.4
50% 142 22.4
40% 133 22.4
30% 123 22.4
20% 113 22.4
10% 102 22.4
Active Idle 89.4 22.4

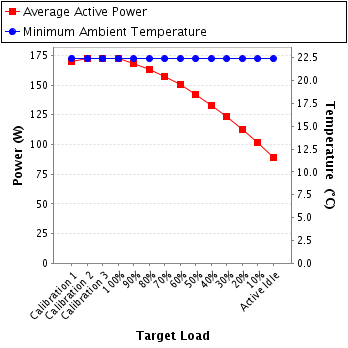

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91G541516
Connectivity: RS-232
Input Connection: Default
Calibration Institute: ETC,TAIWAN
Accredited by: ETC,TAIWAN
Calibration Label: 08-05-BAC-358-03
Date of Calibration: 22-May-2008
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.2-e0c92e60
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 4.50.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: --
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 222 300V 0.796 2A 0.963 170 --
Calibration 2 221 300V 0.806 2A 0.964 172 --
Calibration 3 222 300V 0.807 2A 0.964 172 --
100% 222 300V 0.808 2A 0.964 173 --
90% 221 300V 0.791 2A 0.962 168 --
80% 221 300V 0.769 2A 0.960 163 --
70% 221 300V 0.745 2A 0.957 157 --
60% 221 300V 0.715 2A 0.952 150 --
50% 221 300V 0.680 2A 0.947 142 --
40% 223 300V 0.636 2A 0.939 133 --
30% 223 300V 0.594 2A 0.932 123 --
20% 222 300V 0.550 2A 0.924 113 --
10% 222 300V 0.500 2A 0.915 102 --
Active Idle 222 300V 0.445 2A 0.905 89.4 --

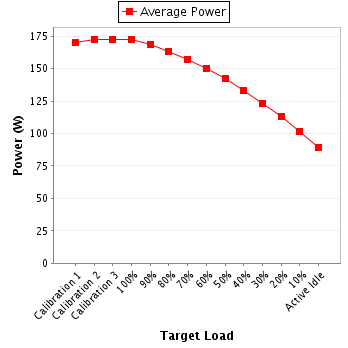

Power details for pwr1
