SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Supermicro Inc. 2021M-UR+ | SPECpower_ssj2008 = 731 overall ssj_ops/watt | ||||
| Test Sponsor: | Advanced Micro Devices | SPEC License #: | 49 | Test Method: | Single Node |
| Tested By: | Advanced Micro Devices | Test Location: | Austin, TX, USA | Test Date: | Aug 5, 2008 |
| Hardware Availability: | Dec-2008 | Software Availability: | May-2008 | Publication: | Nov 5, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

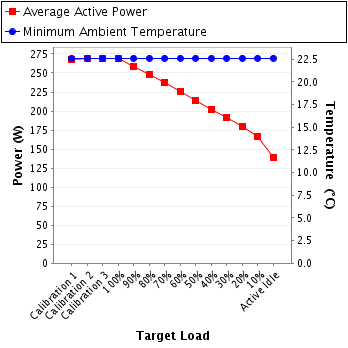

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 267 | 22.6 |
| Calibration 2 | 269 | 22.6 |
| Calibration 3 | 269 | 22.6 |
| 100% | 269 | 22.6 |
| 90% | 259 | 22.6 |
| 80% | 247 | 22.6 |
| 70% | 238 | 22.6 |
| 60% | 225 | 22.6 |
| 50% | 214 | 22.6 |
| 40% | 202 | 22.6 |
| 30% | 191 | 22.6 |
| 20% | 180 | 22.6 |
| 10% | 166 | 22.6 |
| Active Idle | 138 | 22.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GA25595 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 07-1469 |
| Date of Calibration: | 26-Oct-2007 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 118 | 150 | 2.31 | 5 | 0.985 | 267 | -- |
| Calibration 2 | 118 | 150 | 2.32 | 5 | 0.985 | 269 | -- |
| Calibration 3 | 118 | 150 | 2.33 | 5 | 0.985 | 269 | -- |
| 100% | 118 | 150 | 2.32 | 5 | 0.985 | 269 | -- |
| 90% | 118 | 150 | 2.24 | 5 | 0.983 | 259 | -- |
| 80% | 118 | 150 | 2.14 | 5 | 0.982 | 247 | -- |
| 70% | 118 | 150 | 2.06 | 5 | 0.980 | 238 | -- |
| 60% | 118 | 150 | 1.96 | 5 | 0.978 | 225 | -- |
| 50% | 118 | 150 | 1.86 | 5 | 0.976 | 214 | -- |
| 40% | 118 | 150 | 1.76 | 5 | 0.974 | 202 | -- |
| 30% | 118 | 150 | 1.67 | 5 | 0.973 | 191 | -- |
| 20% | 118 | 150 | 1.57 | 5 | 0.972 | 180 | -- |
| 10% | 118 | 150 | 1.45 | 5 | 0.972 | 166 | -- |
| Active Idle | 118 | 150 | 1.21 | 5 | 0.969 | 138 | -- |
