NEC Corporation Express5800/i120Ra-e1(Intel Xeon L5410) ssj_ops@100% = 66,440
Test Sponsor: NEC Corporation SPEC License #: 9006 Test Method: Single Node
Tested By: NEC Corporation Test Location: Fuchu, Tokyo, Japan Test Date: 2008/07/24
Hardware Availability: May-2008 Software Availability: May-2008 Publication: Aug 13, 2008
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     66,507
Calibration 2     66,552
Calibration 3     66,974
ssj_ops@calibrated=66,763
100% 99.5% 66,763 66,440
90% 90.6% 60,087 60,467
80% 78.7% 53,411 52,540
70% 68.5% 46,734 45,754
60% 60.6% 40,058 40,461
50% 50.7% 33,382 33,829
40% 39.8% 26,705 26,565
30% 29.2% 20,029 19,485
20% 19.9% 13,353 13,261
10% 10.1% 6,676 6,770
Active Idle   0 0

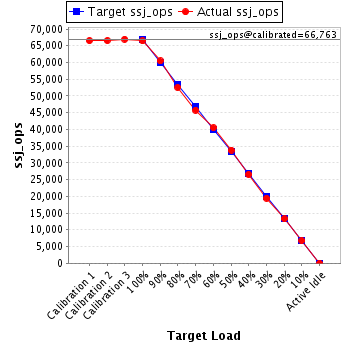

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Express5800/i120Ra-e1(Intel Xeon L5410)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: NEC Corporation
Model: Express5800/i120Ra-e1(Intel Xeon L5410)
Form Factor: --
CPU Name: Intel Xeon L5410
CPU Characteristics: 2.33 GHz, 2x6 MB L2 shared, 1333 MHz bus
CPU Frequency (MHz): 2333
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 8 (1 / core)
CPU(s) Orderable: 1,2
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4096 MB
Memory Details: PC2-5300P, 2 rank, CL5-5-5, ECC
Power Supply Quantity and Rating (W): 1 x 350
Power Supply Details: Delta DPS-350QB-2 H
Disk Drive: 1 x 80GB 7.2K RPM SATAII
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Onboard Gigabit
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: None
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft(R) Windows(R) Server 2003 R2 Enterprise x64 Edition
OS Version: Service Pack 2
Filesystem: NTFS
JVM Vendor: BEA System, Inc.
JVM Version: BEA JRockit(R) (build R27.5.0-110_o-99226-1.6.0_03-20080528-1505-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms1600m -Xmx1600m -XXaggressive -Xgc:genpar -Xns1300m -XXgcthreads:2 -XXoptThreads:2 -XlargePages -XXlazyUnlocking -XXcallprofiling -XXtlasize:min=12k,preferred=256k -XXthroughputcompaction
JVM Affinity: start /affinity [03,0C,30,C0]
JVM Instances: 8
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1
Director Location: Controller
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 4,838,194 1,600
Payment 4,838,191
Order Status 483,818
Delivery 483,819
Stock Level 483,820
Customer Report 4,838,187
Calibration 2 New Order 4,841,481 1,600
Payment 4,841,488
Order Status 484,148
Delivery 484,149
Stock Level 484,148
Customer Report 4,841,487
Calibration 3 New Order 4,874,702 1,600
Payment 4,874,706
Order Status 487,471
Delivery 487,469
Stock Level 487,470
Customer Report 4,874,703
100% 99.5% New Order 4,832,683 1,600
Payment 4,832,683
Order Status 483,267
Delivery 483,269
Stock Level 483,268
Customer Report 4,832,679
90% 90.6% New Order 4,399,658 1,600
Payment 4,399,657
Order Status 439,965
Delivery 439,966
Stock Level 439,966
Customer Report 4,399,655
80% 78.7% New Order 3,821,772 1,600
Payment 3,821,776
Order Status 382,178
Delivery 382,179
Stock Level 382,177
Customer Report 3,821,776
70% 68.5% New Order 3,327,933 1,600
Payment 3,327,929
Order Status 332,794
Delivery 332,791
Stock Level 332,793
Customer Report 3,327,929
60% 60.6% New Order 2,944,503 1,600
Payment 2,944,503
Order Status 294,451
Delivery 294,450
Stock Level 294,451
Customer Report 2,944,502
50% 50.7% New Order 2,460,604 1,600
Payment 2,460,607
Order Status 246,061
Delivery 246,060
Stock Level 246,061
Customer Report 2,460,603
40% 39.8% New Order 1,932,283 1,600
Payment 1,932,288
Order Status 193,228
Delivery 193,229
Stock Level 193,229
Customer Report 1,932,289
30% 29.2% New Order 1,417,273 1,600
Payment 1,417,271
Order Status 141,726
Delivery 141,728
Stock Level 141,728
Customer Report 1,417,274
20% 19.9% New Order 964,540 1,600
Payment 964,541
Order Status 96,453
Delivery 96,457
Stock Level 96,454
Customer Report 964,546
10% 10.1% New Order 492,422 1,600
Payment 492,422
Order Status 49,242
Delivery 49,244
Stock Level 49,243
Customer Report 492,427
Active Idle New Order 0 1,600
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
