NEC Corporation Express5800/i120Ra-e1(Intel Xeon L5410) ssj_ops@100% = 66,706
Test Sponsor: NEC Corporation SPEC License #: 9006 Test Method: Single Node
Tested By: NEC Corporation Test Location: Fuchu, Tokyo, Japan Test Date: 2008/07/24
Hardware Availability: May-2008 Software Availability: May-2008 Publication: Aug 13, 2008
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     66,454
Calibration 2     67,096
Calibration 3     66,909
ssj_ops@calibrated=67,002
100% 99.6% 67,002 66,706
90% 90.5% 60,302 60,623
80% 80.1% 53,602 53,644
70% 69.9% 46,902 46,829
60% 60.2% 40,201 40,322
50% 49.9% 33,501 33,446
40% 40.4% 26,801 27,042
30% 30.4% 20,101 20,351
20% 20.1% 13,400 13,463
10% 9.7% 6,700 6,474
Active Idle   0 0

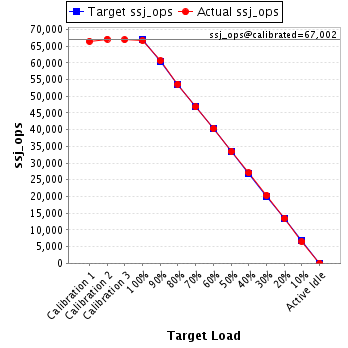

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Express5800/i120Ra-e1(Intel Xeon L5410)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: NEC Corporation
Model: Express5800/i120Ra-e1(Intel Xeon L5410)
Form Factor: --
CPU Name: Intel Xeon L5410
CPU Characteristics: 2.33 GHz, 2x6 MB L2 shared, 1333 MHz bus
CPU Frequency (MHz): 2333
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 8 (1 / core)
CPU(s) Orderable: 1,2
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4096 MB
Memory Details: PC2-5300P, 2 rank, CL5-5-5, ECC
Power Supply Quantity and Rating (W): 1 x 350
Power Supply Details: Delta DPS-350QB-2 H
Disk Drive: 1 x 80GB 7.2K RPM SATAII
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Onboard Gigabit
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: None
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft(R) Windows(R) Server 2003 R2 Enterprise x64 Edition
OS Version: Service Pack 2
Filesystem: NTFS
JVM Vendor: BEA System, Inc.
JVM Version: BEA JRockit(R) (build R27.5.0-110_o-99226-1.6.0_03-20080528-1505-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms1600m -Xmx1600m -XXaggressive -Xgc:genpar -Xns1300m -XXgcthreads:2 -XXoptThreads:2 -XlargePages -XXlazyUnlocking -XXcallprofiling -XXtlasize:min=12k,preferred=256k -XXthroughputcompaction
JVM Affinity: start /affinity [03,0C,30,C0]
JVM Instances: 8
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1
Director Location: Controller
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 4,835,006 1,600
Payment 4,835,009
Order Status 483,501
Delivery 483,501
Stock Level 483,500
Customer Report 4,835,006
Calibration 2 New Order 4,880,685 1,600
Payment 4,880,684
Order Status 488,068
Delivery 488,069
Stock Level 488,069
Customer Report 4,880,687
Calibration 3 New Order 4,868,086 1,600
Payment 4,868,090
Order Status 486,811
Delivery 486,809
Stock Level 486,810
Customer Report 4,868,089
100% 99.6% New Order 4,853,342 1,600
Payment 4,853,348
Order Status 485,335
Delivery 485,335
Stock Level 485,336
Customer Report 4,853,334
90% 90.5% New Order 4,410,818 1,600
Payment 4,410,815
Order Status 441,081
Delivery 441,082
Stock Level 441,081
Customer Report 4,410,817
80% 80.1% New Order 3,901,966 1,600
Payment 3,901,963
Order Status 390,197
Delivery 390,197
Stock Level 390,197
Customer Report 3,901,967
70% 69.9% New Order 3,406,348 1,600
Payment 3,406,350
Order Status 340,634
Delivery 340,636
Stock Level 340,635
Customer Report 3,406,346
60% 60.2% New Order 2,932,904 1,600
Payment 2,932,904
Order Status 293,288
Delivery 293,290
Stock Level 293,289
Customer Report 2,932,902
50% 49.9% New Order 2,432,769 1,600
Payment 2,432,771
Order Status 243,279
Delivery 243,277
Stock Level 243,278
Customer Report 2,432,771
40% 40.4% New Order 1,966,986 1,600
Payment 1,966,981
Order Status 196,699
Delivery 196,699
Stock Level 196,698
Customer Report 1,966,983
30% 30.4% New Order 1,480,300 1,600
Payment 1,480,306
Order Status 148,031
Delivery 148,031
Stock Level 148,031
Customer Report 1,480,301
20% 20.1% New Order 979,238 1,600
Payment 979,237
Order Status 97,924
Delivery 97,924
Stock Level 97,923
Customer Report 979,240
10% 9.7% New Order 470,910 1,600
Payment 470,907
Order Status 47,091
Delivery 47,092
Stock Level 47,092
Customer Report 470,908
Active Idle New Order 0 1,600
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
