Hewlett-Packard Company ProLiant DL120 G5 (2.83 GHz, Intel Xeon processor X3360) SPECpower_ssj2008 = 908 overall ssj_ops/watt
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX Test Date: Jun 11, 2008
Hardware Availability: Sep-2008 Software Availability: Apr-2008 Publication: Jun 20, 2008
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 134 21.5
Calibration 2 134 21.5
Calibration 3 136 21.5
100% 136 21.5
90% 132 21.5
80% 126 21.5
70% 121 21.5
60% 116 21.5
50% 109 21.5
40% 101 21.5
30% 91.7 21.5
20% 84.0 21.5
10% 75.5 21.5
Active Idle 69.5 21.5

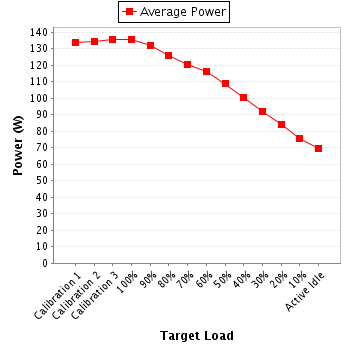

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GB45372
Connectivity: GPIB
Input Connection: --
Calibration Institute: NIST
Accredited by: Yokogawa Electric International Pte. Ltd.
Calibration Label: 07-1675
Date of Calibration: 7-Dec-2007
PTDaemon Host System: Controller System
PTDaemon Host OS: Microsoft Windows XP Professional
PTDaemon Version: 1.1-45c8e665
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 4.20.0.0
Connectivity: USB
PTDaemon Host System: Controller System
PTDaemon Host OS: Microsoft Windows XP Professional
Setup Description: --
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 202 -- 0.760 -- 0.872 134 --
Calibration 2 202 -- 0.762 -- 0.872 134 --
Calibration 3 202 -- 0.772 -- 0.872 136 --
100% 201 -- 0.771 -- 0.873 136 --
90% 201 -- 0.753 -- 0.872 132 --
80% 201 -- 0.719 -- 0.871 126 --
70% 202 -- 0.688 -- 0.867 121 --
60% 202 -- 0.665 -- 0.864 116 --
50% 202 -- 0.624 -- 0.862 109 --
40% 202 -- 0.579 -- 0.861 101 --
30% 201 -- 0.529 -- 0.861 91.7 --
20% 201 -- 0.486 -- 0.858 84.0 --
10% 201 -- 0.440 -- 0.853 75.5 --
Active Idle 201 -- 0.406 -- 0.851 69.5 --
Power details for pwr1
