SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| SGI Altix XE250 (Intel Xeon processor X5272) | SPECpower_ssj2008 = 450 overall ssj_ops/watt | ||||
| Test Sponsor: | SGI | SPEC License #: | 4 | Test Method: | Single Node |
| Tested By: | SGI | Test Location: | Mountain View,CA, USA | Test Date: | May 9, 2008 |
| Hardware Availability: | Feb-2008 | Software Availability: | Apr-2008 | Publication: | Jun 4, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

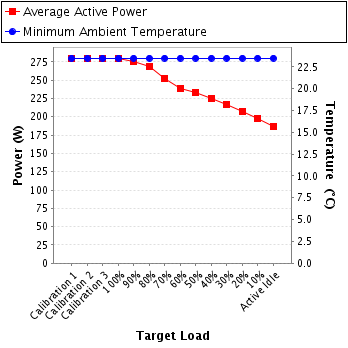

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 279 | 23.5 |
| Calibration 2 | 280 | 23.5 |
| Calibration 3 | 280 | 23.5 |
| 100% | 280 | 23.5 |
| 90% | 275 | 23.5 |
| 80% | 269 | 23.5 |
| 70% | 253 | 23.5 |
| 60% | 239 | 23.5 |
| 50% | 233 | 23.5 |
| 40% | 226 | 23.5 |
| 30% | 216 | 23.5 |
| 20% | 207 | 23.5 |
| 10% | 197 | 23.5 |
| Active Idle | 186 | 23.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd |
| Model: | WT210 |
| Serial Number: | 91H132263 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd |
| Calibration Label: | 08-0385 |
| Date of Calibration: | 29-Feb-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.1-45c8e665 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.50.14.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |

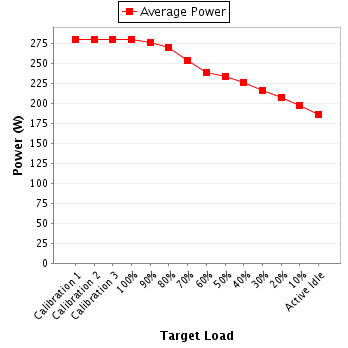

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 203 | -- | 1.46 | -- | 0.944 | 279 | -- |
| Calibration 2 | 203 | -- | 1.46 | -- | 0.945 | 280 | -- |
| Calibration 3 | 203 | -- | 1.46 | -- | 0.945 | 280 | -- |
| 100% | 203 | -- | 1.46 | -- | 0.945 | 280 | -- |
| 90% | 203 | -- | 1.44 | -- | 0.943 | 275 | -- |
| 80% | 203 | -- | 1.41 | -- | 0.941 | 269 | -- |
| 70% | 203 | -- | 1.33 | -- | 0.936 | 253 | -- |
| 60% | 203 | -- | 1.27 | -- | 0.931 | 239 | -- |
| 50% | 203 | -- | 1.24 | -- | 0.928 | 233 | -- |
| 40% | 203 | -- | 1.20 | -- | 0.924 | 226 | -- |
| 30% | 203 | -- | 1.16 | -- | 0.919 | 216 | -- |
| 20% | 203 | -- | 1.12 | -- | 0.915 | 207 | -- |
| 10% | 203 | -- | 1.07 | -- | 0.910 | 197 | -- |
| Active Idle | 203 | -- | 1.01 | -- | 0.906 | 186 | -- |
