SGI Altix XE320 Single Node (2.5 GHz, Intel Xeon processor E5420) SPECpower_ssj2008 = 681 overall ssj_ops/watt
Test Sponsor: SGI SPEC License #: 4 Test Method: Single Node
Tested By: SGI Test Location: Mountain View,CA, USA Test Date: May 5, 2008
Hardware Availability: Jun-2008 Software Availability: Apr-2008 Publication: Jun 4, 2008
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 260 21.1
Calibration 2 260 21.1
Calibration 3 260 21.0
100% 260 21.0
90% 255 21.0
80% 247 21.0
70% 231 21.0
60% 221 21.0
50% 214 21.0
40% 206 20.9
30% 197 20.9
20% 185 20.9
10% 172 20.9
Active Idle 155 20.9

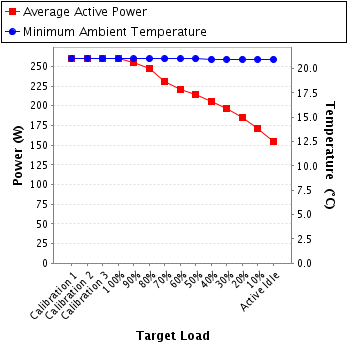

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd
Model: WT210
Serial Number: 91H132263
Connectivity: RS-232
Input Connection: --
Calibration Institute: NIST
Accredited by: Yokogawa Electric International Pte. Ltd
Calibration Label: 08-0385
Date of Calibration: 29-Feb-2008
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.1-45c8e665
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 4.50.14.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: --
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 203 -- 1.35 -- 0.953 260 --
Calibration 2 203 -- 1.35 -- 0.953 260 --
Calibration 3 203 -- 1.35 -- 0.953 260 --
100% 203 -- 1.34 -- 0.953 260 --
90% 203 -- 1.32 -- 0.952 255 --
80% 203 -- 1.28 -- 0.950 247 --
70% 203 -- 1.21 -- 0.946 231 --
60% 203 -- 1.16 -- 0.943 221 --
50% 203 -- 1.12 -- 0.940 214 --
40% 203 -- 1.08 -- 0.936 206 --
30% 203 -- 1.04 -- 0.931 197 --
20% 203 -- 0.988 -- 0.924 185 --
10% 203 -- 0.925 -- 0.915 172 --
Active Idle 203 -- 0.846 -- 0.904 155 --
Power details for pwr1
