SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3450 | SPECpower_ssj2008 = 854 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | RTP, NC, USA | Test Date: | Mar 7, 2008 |
| Hardware Availability: | May-2008 | Software Availability: | Jun-2008 | Publication: | Mar 26, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

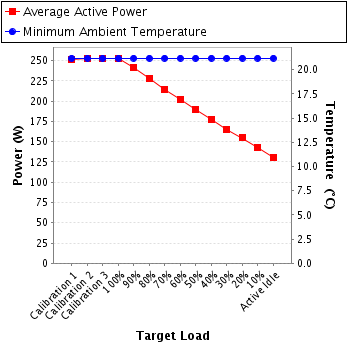

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 251 | 21.2 |
| Calibration 2 | 253 | 21.2 |
| Calibration 3 | 253 | 21.2 |
| 100% | 252 | 21.2 |
| 90% | 241 | 21.2 |
| 80% | 228 | 21.2 |
| 70% | 215 | 21.2 |
| 60% | 202 | 21.2 |
| 50% | 190 | 21.2 |
| 40% | 177 | 21.2 |
| 30% | 166 | 21.2 |
| 20% | 155 | 21.2 |
| 10% | 143 | 21.2 |
| Active Idle | 130 | 21.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GB37404 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 07-1646 |
| Date of Calibration: | 28-Nov-2007 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.1-45c8e665 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 203 | -- | 1.28 | -- | 0.964 | 251 | -- |
| Calibration 2 | 203 | -- | 1.29 | -- | 0.964 | 253 | -- |
| Calibration 3 | 203 | -- | 1.29 | -- | 0.964 | 253 | -- |
| 100% | 203 | -- | 1.29 | -- | 0.964 | 252 | -- |
| 90% | 203 | -- | 1.24 | -- | 0.962 | 241 | -- |
| 80% | 203 | -- | 1.17 | -- | 0.958 | 228 | -- |
| 70% | 203 | -- | 1.11 | -- | 0.954 | 215 | -- |
| 60% | 203 | -- | 1.05 | -- | 0.950 | 202 | -- |
| 50% | 203 | -- | 0.988 | -- | 0.945 | 190 | -- |
| 40% | 203 | -- | 0.927 | -- | 0.939 | 177 | -- |
| 30% | 204 | -- | 0.872 | -- | 0.933 | 166 | -- |
| 20% | 204 | -- | 0.819 | -- | 0.927 | 155 | -- |
| 10% | 203 | -- | 0.763 | -- | 0.921 | 143 | -- |
| Active Idle | 204 | -- | 0.699 | -- | 0.916 | 130 | -- |
