Fujitsu Siemens Computers PRIMERGY RX300 S4 (INTEL Xeon E5440) ssj_ops@100% = 303,846
ssj_ops@100% per JVM = 75,961
Test Sponsor: Fujitsu Siemens Computers SPEC License #: 22 Test Method: Single Node
Tested By: Fujitsu Siemens Computers Test Location: Paderborn, Germany Test Date: Jan 15, 2008
Hardware Availability: Dec-2007 Software Availability: Oct-2007 Publication: Jan 30, 2008
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     301,450
Calibration 2     304,995
Calibration 3     304,313
ssj_ops@calibrated=304,654
100% 99.7% 304,654 303,846
90% 89.5% 274,188 272,811
80% 79.7% 243,723 242,870
70% 70.0% 213,258 213,115
60% 59.8% 182,792 182,251
50% 50.2% 152,327 152,917
40% 40.3% 121,861 122,829
30% 30.0% 91,396 91,425
20% 20.1% 60,931 61,124
10% 10.1% 30,465 30,902
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: PRIMERGY RX300 S4 (INTEL Xeon E5440)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Fujitsu Siemens Computers
Model: PRIMERGY RX300 S4 (INTEL Xeon E5440)
Form Factor: --
CPU Name: Intel Xeon E5440
CPU Characteristics: 2.83 GHz, 2x6MB L2C, 1333 MHz system bus
CPU Frequency (MHz): 2830
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 8 (1 / core)
CPU(s) Orderable: 1,2
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4x4096MB
Memory Details: PC2-5300F 2Rx4 (CAS 5-5-5)
Power Supply Quantity and Rating (W): 1 x 700
Power Supply Details: Fujitsu Siemens Computers DPS-700KB A
Disk Drive: 1 x Western Digital WD5000AAKS 500GB 7.2 krpm 3.5" SATA
Disk Controller: LSI Logic integrated SAS 3000 series, 8-port with 1068E
# and type of Network Interface Cards (NICs) Installed: 2 x Broadcom BCM5708C NetXtreme II GigE (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: None
Other Hardware: None
Software
Power Management: Enabled (Server Balanced Power and Performance)
Operating System (OS): Microsoft(R) Windows(R) Server 2003 R2 Enterprise x64 Edition
OS Version: Version 5.2.3790 Service Pack 1 Build 3790
Filesystem: NTFS
JVM Vendor: BEA Systems, Inc.
JVM Version: BEA JRockit(R) (build P27.4.0-10-90053-1.6.0_02-20071009-1827-windows-x86_64)
JVM Command-line Options: -Xms3600m -Xns3200m -Xmx3600m -Xlargepages -XXaggressive -XXthroughputcompaction -XXlazyunlocking -XXcallprofiling -Xgc:genpar -XXgcthreads=2 -XXtlasize:min=4k,preferred=512k
JVM Affinity: start /affinity [03,0c,30,c0]
JVM Instances: 8
JVM Initial Heap (MB): 3600
JVM Maximum Heap (MB): 3600
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1
Director Location: Controller
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
0001.001 76,103
0001.002 76,042
0001.003 76,227
0001.004 75,474
ssj_ops@100% 303,846
ssj_ops@100% per JVM 75,961

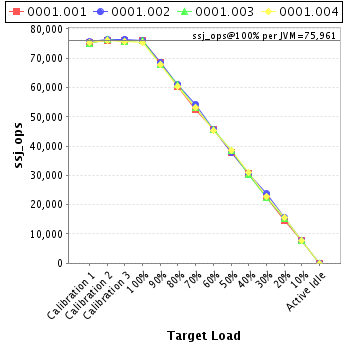

Graph of per-instance results
JVM '0001.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,476
Calibration 2     76,146
Calibration 3     76,128
ssj_ops@calibrated=76,137
100% 100.0% 76,137 76,103
90% 90.1% 68,523 68,571
80% 79.1% 60,909 60,212
70% 68.9% 53,296 52,451
60% 59.9% 45,682 45,608
50% 49.8% 38,068 37,885
40% 40.3% 30,455 30,662
30% 29.6% 22,841 22,539
20% 19.2% 15,227 14,582
10% 10.2% 7,614 7,758
Active Idle   0 0
Graph of results
JVM '0001.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,586
Calibration 2     76,392
Calibration 3     76,526
ssj_ops@calibrated=76,459
100% 99.5% 76,459 76,042
90% 89.6% 68,813 68,478
80% 80.0% 61,168 61,192
70% 71.0% 53,522 54,260
60% 59.7% 45,876 45,657
50% 49.6% 38,230 37,946
40% 40.2% 30,584 30,752
30% 31.0% 22,938 23,702
20% 20.5% 15,292 15,698
10% 10.1% 7,646 7,708
Active Idle   0 0
Graph of results
JVM '0001.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,016
Calibration 2     76,277
Calibration 3     75,828
ssj_ops@calibrated=76,052
100% 100.2% 76,052 76,227
90% 89.4% 68,447 68,017
80% 80.3% 60,842 61,055
70% 69.9% 53,236 53,142
60% 60.1% 45,631 45,685
50% 50.7% 38,026 38,555
40% 40.0% 30,421 30,459
30% 29.3% 22,816 22,299
20% 20.1% 15,210 15,324
10% 10.1% 7,605 7,712
Active Idle   0 0
Graph of results
JVM '0001.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,373
Calibration 2     76,180
Calibration 3     75,831
ssj_ops@calibrated=76,006
100% 99.3% 76,006 75,474
90% 89.1% 68,405 67,746
80% 79.5% 60,804 60,411
70% 70.1% 53,204 53,262
60% 59.6% 45,603 45,301
50% 50.7% 38,003 38,531
40% 40.7% 30,402 30,956
30% 30.1% 22,802 22,885
20% 20.4% 15,201 15,520
10% 10.2% 7,601 7,725
Active Idle   0 0
Graph of results
