SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Super Micro Computer, Inc. Supermicro 6025B-TR+ (Intel Xeon processor L5335) | SPECpower_ssj2008 = 438 overall ssj_ops/watt | ||||
| Test Sponsor: | Intel Corp. | SPEC License #: | 13 | Test Method: | Single Node |
| Tested By: | Intel Corp. | Test Location: | Hillsboro, Oregon, USA | Test Date: | Nov 28, 2007 |
| Hardware Availability: | Nov-2007 | Software Availability: | Nov-2007 | Publication: | Feb 13, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

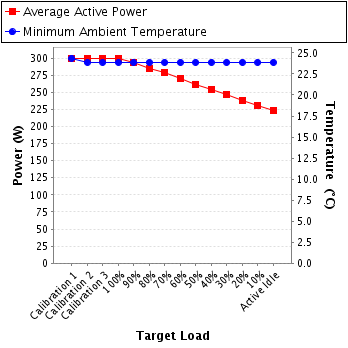

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 300 | 24.4 |
| Calibration 2 | 300 | 23.9 |
| Calibration 3 | 300 | 23.9 |
| 100% | 300 | 23.9 |
| 90% | 293 | 23.9 |
| 80% | 286 | 23.9 |
| 70% | 279 | 23.9 |
| 60% | 270 | 23.9 |
| 50% | 262 | 23.9 |
| 40% | 254 | 23.9 |
| 30% | 247 | 23.9 |
| 20% | 239 | 23.9 |
| 10% | 231 | 23.9 |
| Active Idle | 223 | 23.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91G533352 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | NIST |
| Accredited by: | Intel Oregon Calibration Lab |
| Calibration Label: | CCN 20-24428 |
| Date of Calibration: | 13-Nov-2007 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 0.21-2f7044de |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Digi Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |

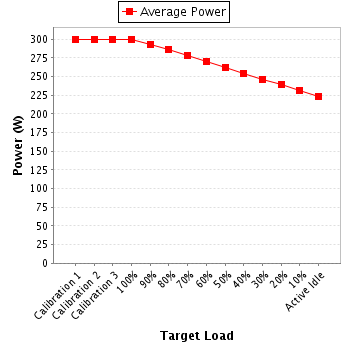

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 120 | -- | 2.59 | -- | 0.970 | 300 | -- |
| Calibration 2 | 120 | -- | 2.59 | -- | 0.970 | 300 | -- |
| Calibration 3 | 120 | -- | 2.59 | -- | 0.970 | 300 | -- |
| 100% | 120 | -- | 2.58 | -- | 0.970 | 300 | -- |
| 90% | 120 | -- | 2.53 | -- | 0.969 | 293 | -- |
| 80% | 120 | -- | 2.47 | -- | 0.967 | 286 | -- |
| 70% | 120 | -- | 2.41 | -- | 0.966 | 279 | -- |
| 60% | 120 | -- | 2.34 | -- | 0.964 | 270 | -- |
| 50% | 120 | -- | 2.27 | -- | 0.963 | 262 | -- |
| 40% | 120 | -- | 2.21 | -- | 0.961 | 254 | -- |
| 30% | 120 | -- | 2.14 | -- | 0.960 | 247 | -- |
| 20% | 120 | -- | 2.08 | -- | 0.959 | 239 | -- |
| 10% | 120 | -- | 2.01 | -- | 0.958 | 231 | -- |
| Active Idle | 120 | -- | 1.94 | -- | 0.956 | 223 | -- |
