Hewlett-Packard Company Proliant DL360 G5 (3.0 GHz, Intel Xeon processor E5450) SPECpower_ssj2008 = 662 overall ssj_ops/watt
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX Test Date: Nov 2, 2007
Hardware Availability: Jan-2008 Software Availability: Dec-2007 Publication: Dec 11, 2007
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.4% 308,847 288 1,073
90% 90.7% 281,745 281 1,003
80% 80.3% 249,465 270 925
70% 69.7% 216,451 258 839
60% 59.5% 184,858 247 749
50% 49.9% 155,122 234 662
40% 39.9% 123,959 221 561
30% 29.9% 92,747 210 442
20% 19.9% 61,724 200 309
10% 9.9% 30,880 190 163
Active Idle 0 180 0
∑ssj_ops / ∑power = 662

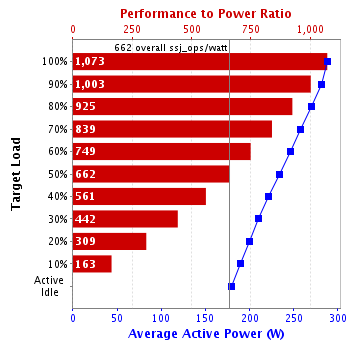

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Proliant DL360 G5 (3.0 GHz, Intel Xeon processor E5450)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: Proliant DL360 G5 (3.0 GHz, Intel Xeon processor E5450)
Form Factor: --
CPU Name: Intel Xeon E5450
CPU Characteristics: 3.0 GHz, 2x6 MB L2 shared, 1333 MHz system bus
CPU Frequency (MHz): 3000
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 8 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4x4096 MB
Memory Details: PC2-5300F CL5 LP; slots 1A,3A,5B,7B populated
Power Supply Quantity and Rating (W): 1 x 700
Power Supply Details: HP part # 393527-001
Disk Drive: 1 x 60GB HP, 1.5G, 5.4K, 2.5" SFF SATA HDD
Disk Controller: HP Smart Array P400
# and type of Network Interface Cards (NICs) Installed: 2 x NC373i
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: HP Dynamic Power Regulator enabled
Operating System (OS): Microsoft Windows Server 2003 x64 Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: BEA Systems, Inc.
JVM Version: BEA JRockit(R) (build P27.4.0-10-90053-1.6.0_02-20071009-1827-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms3600m -Xmx3600m -Xns3100m -XXaggressive -XXlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: Used "start /affinity" with "0x3","0xc","0x30" and "0xc0" CPU masks.
JVM Instances: 8
JVM Initial Heap (MB): 3600
JVM Maximum Heap (MB): 3600
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 0.23
Director Location: Controller
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Controller System
Hardware
Hardware Vendor: HP
Model: ProLiant DL360 G3
CPU Description: Intel Xeon
Memory amount (GB): 2
Software
Operating System (OS): Microsoft Windows XP Professional
JVM Vendor: BEA Systems, Inc.
JVM Version: BEA JRockit(R) (build R27.4.0-90-89592-1.6.0_02-20070928-1715-windows-ia32, compiled mode)
CCS Version: 0.21
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91F519016
Connectivity: GPIB
Input Connection: --
Calibration Institute: NIST
Accredited by: HP Metrology
Calibration Label: 816347
Date of Calibration: 14-Nov-07
PTDaemon Host System: Controller System
PTDaemon Host OS: Windows XP Professional
PTDaemon Version: 0.21-2f7044de
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 4.20.0.0
Connectivity: USB
PTDaemon Host System: Controller System
PTDaemon Host OS: Microsoft Microsoft Windows XP Professional
Setup Description: --
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 288 20.2
90% 281 20.2
80% 270 20.2
70% 258 20.2
60% 247 20.2
50% 234 20.2
40% 221 20.2
30% 210 20.2
20% 200 20.2
10% 190 20.2
Active Idle 180 20.2
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 20.2 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     308,814
Calibration 2     310,719
Calibration 3     310,512
ssj_ops@calibrated=310,616
100% 99.4% 310,616 308,847
90% 90.7% 279,554 281,745
80% 80.3% 248,493 249,465
70% 69.7% 217,431 216,451
60% 59.5% 186,369 184,858
50% 49.9% 155,308 155,122
40% 39.9% 124,246 123,959
30% 29.9% 93,185 92,747
20% 19.9% 62,123 61,724
10% 9.9% 31,062 30,880
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
