Fujitsu Siemens Computers PRIMERGY RX300 S3 (Intel Xeon L5335) ssj_ops@100% = 201,689
ssj_ops@100% per JVM = 50,422
Test Sponsor: Fujitsu Siemens Computers SPEC License #: 22 Test Method: Single Node
Tested By: Fujitsu Siemens Computers Test Location: Paderborn, Germany Test Date: Nov 26, 2007
Hardware Availability: Sep-2007 Software Availability: Nov-2007 Publication: Dec 11, 2007
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     199,941
Calibration 2     203,781
Calibration 3     203,265
ssj_ops@calibrated=203,523
100% 99.1% 203,523 201,689
90% 89.9% 183,170 183,027
80% 80.3% 162,818 163,381
70% 70.8% 142,466 144,116
60% 60.0% 122,114 122,114
50% 49.8% 101,761 101,408
40% 40.1% 81,409 81,694
30% 29.7% 61,057 60,513
20% 20.2% 40,705 41,040
10% 9.9% 20,352 20,240
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: PRIMERGY RX300 S3 (Intel Xeon L5335)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Fujitsu Siemens Computers
Model: PRIMERGY RX300 S3 (Intel Xeon L5335)
Form Factor: --
CPU Name: Intel Xeon L5335
CPU Characteristics: 2.0 GHz, 2x4 MB L2C shared, 1333 MHz system bus
CPU Frequency (MHz): 2000
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 8 (1 / core)
CPU(s) Orderable: 1,2
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4x4096MB
Memory Details: PC2-5300F 2Rx4 (CAS 5-5-5, Samsung)
Power Supply Quantity and Rating (W): 1 x 600
Power Supply Details: Liteon PS-3601-1F
Disk Drive: 1 x Seagate ST3146854SS 146GB 15krpm SAS
Disk Controller: LSI Logic integrated SAS
# and type of Network Interface Cards (NICs) Installed: Broadcom 5715 NetXtreme Gigabit Ethernet (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: PS2
Mouse: USB
Monitor: Yes
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Disabled
Operating System (OS): Microsoft(R) Windows(R) Server 2003 Enterprise x64 Edition
OS Version: Version 5.2.3790 Service Pack 1 Build 3790
Filesystem: NTFS
JVM Vendor: BEA Systems, Inc.
JVM Version: BEA JRockit(R) (build R27.4.0-90-89592-1.6.0_02-20070928-1715-windows-x86_64)
JVM Command-line Options: -Xms3600m -Xns3000m -Xmx3600m -Xlargepages -XXaggressive -XXthroughputcompaction -XXlazyunlocking -XXcallprofiling -Xgc:genpar -XXgcthreads=2 -XXtlasize:min=4k,preferred=1024k
JVM Affinity: start /affinity [03,0c,30,c0]
JVM Instances: 8
JVM Initial Heap (MB): 3600
JVM Maximum Heap (MB): 3600
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 0.23
Director Location: SUT
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
0001.001 50,038
0001.002 50,861
0001.003 50,756
0001.004 50,033
ssj_ops@100% 201,689
ssj_ops@100% per JVM 50,422

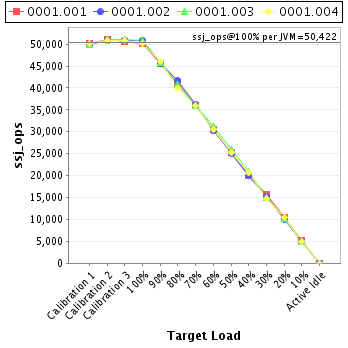

Graph of per-instance results
JVM '0001.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     50,036
Calibration 2     51,040
Calibration 3     50,533
ssj_ops@calibrated=50,786
100% 98.5% 50,786 50,038
90% 89.7% 45,708 45,578
80% 80.6% 40,629 40,952
70% 71.0% 35,550 36,053
60% 59.9% 30,472 30,409
50% 49.5% 25,393 25,159
40% 39.4% 20,315 19,987
30% 30.7% 15,236 15,599
20% 20.5% 10,157 10,395
10% 10.1% 5,079 5,150
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

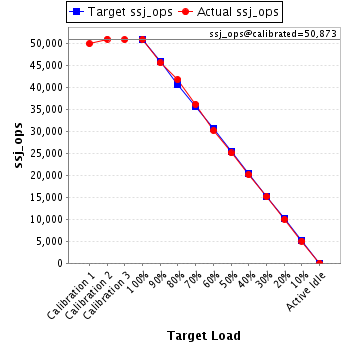

JVM '0001.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     49,872
Calibration 2     50,926
Calibration 3     50,820
ssj_ops@calibrated=50,873
100% 100.0% 50,873 50,861
90% 89.5% 45,786 45,525
80% 82.0% 40,699 41,698
70% 71.0% 35,611 36,128
60% 59.3% 30,524 30,180
50% 49.3% 25,437 25,072
40% 39.5% 20,349 20,115
30% 29.7% 15,262 15,131
20% 19.6% 10,175 9,979
10% 9.9% 5,087 5,016
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

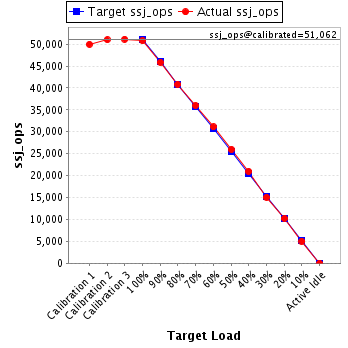

JVM '0001.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     49,960
Calibration 2     50,998
Calibration 3     51,126
ssj_ops@calibrated=51,062
100% 99.4% 51,062 50,756
90% 89.8% 45,956 45,839
80% 79.9% 40,850 40,813
70% 70.5% 35,744 35,978
60% 60.9% 30,637 31,104
50% 50.9% 25,531 25,991
40% 41.1% 20,425 20,967
30% 29.5% 15,319 15,055
20% 20.1% 10,212 10,242
10% 9.9% 5,106 5,034
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

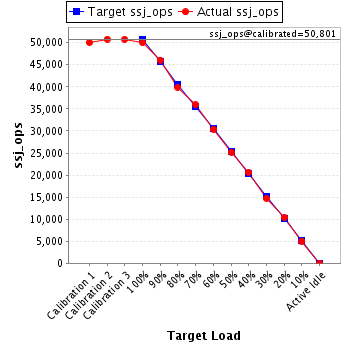

JVM '0001.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     50,073
Calibration 2     50,816
Calibration 3     50,785
ssj_ops@calibrated=50,801
100% 98.5% 50,801 50,033
90% 90.7% 45,721 46,085
80% 78.6% 40,640 39,918
70% 70.8% 35,560 35,957
60% 59.9% 30,480 30,421
50% 49.6% 25,400 25,187
40% 40.6% 20,320 20,625
30% 29.0% 15,240 14,729
20% 20.5% 10,160 10,425
10% 9.9% 5,080 5,039
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
