SPECweb96 Result

Performance

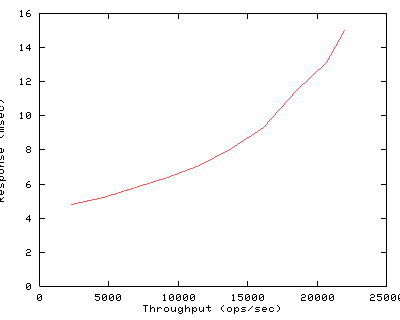

Throughput (ops/sec) Response (msec) 2310 4.8 4620 5.2 6931 5.8 9241 6.4 11551 7.1 13861 8.1 16173 9.3 18483 11.5 20683 13.1 22007 15.0

Configuration

Notes

Network Notes

• Each ACEswitch 180 divided into two virtual LANs.

• Each virtual LAN connects one card in the SUT and 3 clients.

• MTU size = 9000 bytes.


Other Notes

• IIS settings: listen port 80, no logging, maximum performance.

• IIS Home Directory: Access for Read and Directory Browsing Allowed

  only, Application Settings permissions "none".

• Network interrupts affinitized one NIC per CPU.

• One disk for OS and pagefile, 4 disks OS striped for web pages, 4

  disks PERC striped for logs.

• Registry Settings:

• - Tcpip/Parameters/MaxHashTableSize=0x10000, sets TCB hash table

  size to 65,536 entries, default is 512.

• - Tcpip/Parameters/TcpTimedWaitDelay=0x3c, sets TIME_WAIT parameter

  to 60 seconds (non-RFC 1122), default is 240.

• - Tcpip/Parameters/MaxFreeTwTcbs=1400000, sets maximum number of

  TIME_WAIT tcbs to 1,400,000.

• - Tcpip/Parameters/MaxSendSegments = 0x1000, sets maximum TCP

  segments sent consecutively to a destination, default 64.

• - Tcpip/Parameters/NumTcbTablePartitions = 32, sets number of

  independent TCB table segments, default 4.

• - NDIS/Parameters/ProcessorAffinityMask=0, forces processor that

  handled interrupt to also handle that DPC, default is any processor.

• - Inetinfo/Parameters/ObjectCacheTTL=0, sets IIS object cache

  timeout to 0 seconds, default 10 minutes

• - Inetinfo/Parameters/OpenFileInCache=0, sets number of open files

  in object cache to 0

• - Inetinfo/Parameters/MaxPoolThreads=1, sets pool threads per

  processor, default is 10

• - Inetinfo/Parameters/PoolThreadLimit=8, sets total pool threads per

  system to 8

• For each Alteon NIC:

• - Altndis(X)/Parameters/SendCoalMax=80, sets number of send buffer

  descriptors in send ring, default 333.

• - Altndis(X)/Parameters/RecvCoalMax=20, sets number of frames

  received before notifying host, default 333.

• - Altndis(X)/Parameters/SendCoalTicks=1000, sets number of microsec.

  before send buffers are returned to host, default 2.

• - Altndis(X)/Parameters/RecvCoalTicks=1000, sets number of microsec.

  before recv buffers are given to host, default 2.

• - Altndis(X)/Parameters/JumboFrames=1, enables Jumbo Frame

  support.

• Alternate HTTP/HT.c used. Repeated client-side calls to

  gethostbyname() omitted, as approved

• by SPEC. No change in measured server performance but reduction in

  client load.


Test Run Details
