SPECweb96 Result

IBM Corporation:S/390 9672-Y16 G5
IBM Corporation:IBM HTTP Server V5.1 for OS/390
SPECweb96 = 3202


Performance

Throughput
(ops/sec)
Response
(msec)
32411.4
64815.9
97218.4
129622.3
161928.0
194428.6
226732.8
260045.5
288973.1
320276.9

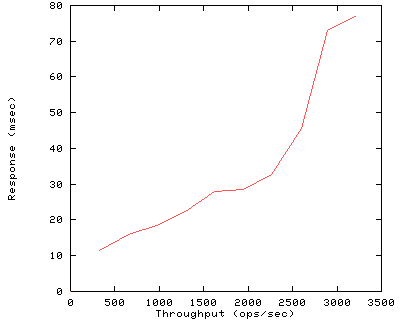

Performance Graph


Configuration

Availability Dates
Hardware Nov-98
HTTP Software Mar-99
Operating SystemMar-99

Hardware
Vendor IBM Corporation
Model S/390 9672-Y16 G5
Processor 500 MHz S/390 G5 CMOS
# of Processors 1
Primary Cache 256KB L1 Cache
Secondary Cache 4MB L2 Cache
Other Cache None
Memory 2GB Central Storage; 10GB Expanded Storage
Disk Subsystem 1 9393-T82 RAMAC Virtual Array
Disk Controllers4 Integrated Virtual Control Units
Other Hardware None

Software
Operating SystemOS/390 V2R7
File System TypeHFS (Hierarchical File System)
Other Software

HTTP Software
Vendor IBM Corporation
HTTP Software IBM HTTP Server V5.1 for OS/390
# of "threads" 40
Server Cache Integrated
Log Mode Common

Test Sponsor
Test Date Nov-98
Tested By IBM - Raleigh
SPEC License11

Network
# of Controllers 7
Network ControllersESCON Channels
# of Nets 7
Type of Nets ESCON Channels
Network Speed 136 Mbits/sec
MSL (sec) 30 (Non RFC1122)
Time-Wait (sec) 60 (Non RFC1122)

Load Generators
# of Load Generators7
# of Processes Each 40
Model IBM SP/6000 - 7015-R50
Processor 200 MHz 604e
# of Processors 8
Memory 1.5GB
Network Controller ESCON MCA Channel Adapters
Operating System AIX 4.3.1
Compiler IBM Cset++ 3.1.3

Benchmark Configuration
Maximum Requested Load 3240
Maximum Fileset Size (MB)1244


Notes

OS Notes

Network Notes

Other Notes


Test Run Details

Detailed Statistics
Load Throughput Class Target Mix Actual Mix Error Percent Mean Response Std Dev Response
324324035.0%35.0%0.00%8.8413.75
150.0%50.0%0.00%9.4314.35
214.0%14.0%0.00%19.6824.11
31.0%1.0%0.00%84.8585.10
648648035.0%35.0%0.00%12.5916.80
150.0%50.0%0.00%13.1617.26
214.0%14.0%0.00%27.6131.04
31.0%1.0%0.00%106.47106.66
972972035.0%35.0%0.00%14.7118.32
150.0%50.0%0.00%15.2918.82
214.0%14.0%0.00%31.5034.40
31.0%1.0%0.00%120.74121.17
12961296035.0%35.0%0.00%18.1621.72
150.0%50.0%0.00%18.6822.10
214.0%14.0%0.00%36.8540.15
31.0%1.0%0.00%142.02147.44
16201619035.0%35.0%0.00%23.2827.51
150.0%50.0%0.00%23.7627.88
214.0%14.0%0.00%45.1349.99
31.0%1.0%0.00%166.12179.34
19441944035.0%35.0%0.00%23.7827.72
150.0%50.0%0.00%24.2128.14
214.0%14.0%0.00%45.9150.38
31.0%1.0%0.00%170.83184.51
22682267035.0%35.0%0.00%27.6131.82
150.0%50.0%0.00%27.9332.00
214.0%14.0%0.00%51.9757.49
31.0%1.0%0.00%187.33205.05
25922600035.0%35.0%0.00%38.7250.46
150.0%50.0%0.00%38.9551.57
214.0%14.0%0.00%71.0885.68
31.0%1.0%0.00%252.88301.16
29162889035.0%35.0%0.00%63.1274.61
150.0%50.0%0.00%63.0473.17
214.0%14.0%0.00%113.01129.11
31.0%1.0%0.00%396.24441.38
32403202035.0%35.0%0.00%66.50689.54
150.0%50.0%0.00%67.57736.62
214.0%14.0%0.00%114.14480.21
31.0%1.0%0.01%409.971051.17


Wed Dec 16 9:36:58 1998

First published at SPEC.org on 15-Dec-1998
