SPECweb96 Result

Hewlett-Packard:	HP 9000/C240
Zeus Technology Limited:	Zeus 1.2.5

SPECweb96 = 1493

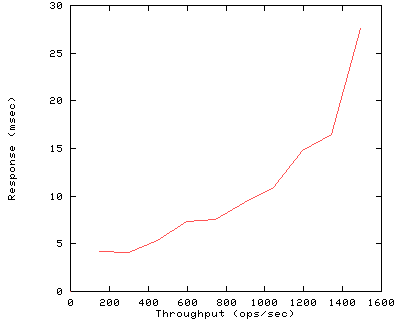

Performance

Throughput (ops/sec)	Response (msec)
149	4.2
298	4.1
448	5.3
597	7.3
746	7.6
897	9.3
1044	10.9
1194	14.8
1344	16.5
1493	27.6

Configuration

Availability Dates
Hardware	Dec-97
HTTP Software	Aug-97
Operating System	Dec-97

Hardware

Vendor Hewlett-Packard

Model HP 9000/C240

Processor 236MHz PA-RISC 8200

# of Processors 1

Primary Cache 2MB+2MB

Secondary Cache None

Other Cache None

Memory 1280MB

Disk Subsystem Seagate ST34371W SCSI 4.0GB Drive

Disk Controllers Internal FWD SCSI

Other Hardware None

Software

Operating System HP-UX 10.20

File System Type HFS

Other Software J2806CA, PHNE_12407

HTTP Software

Vendor Zeus Technology Limited

HTTP Software Zeus 1.2.5

# of "threads" 1

Server Cache See Notes

Log Mode Common Log Format

Test Sponsor
Test Date	Oct-97
Tested By	HP Cupertino, CA
SPEC License	3

Network

# of Controllers 1

Network Controllers HP J3573A opt 001

# of Nets 1

Type of Nets ATM OC3c

Network Speed 622Mbit

MSL (sec) 30 (Non RFC1122)

Time-Wait (sec) 60 (Non RFC1122)

Load Generators

# of Load Generators 5

# of Processes Each 32

Model HP 9000/B160L

Processor 160MHz PA-RISC 8000

# of Processors 1

Memory 160MB

Network Controller HP J2498A opt 001

Operating System HP-UX 10.20

Compiler HP92453-01 A.10.32.03 HP C Compiler

Benchmark Configuration

Maximum Requested Load 1490

Maximum Fileset Size (MB) 844

Notes

OS Notes

* dbc_max_pct 5,Fix file system buffer cache to 5% of memory, default is 'dynamic'
* ninode 10000, set size of inode table, default is dependent on other values
* so_qlimit_max 4096, set socket queue length, default is 256
* ip_intrqmax 256, maximum number of inbound packets awaiting processing, default is 50
* tcp_hash_size 4096, hash table size, default is 256

Network Notes

* 1 FORE ASC-200BX ATM switch configured with ATM-155 for the LGs,
and ATM-622 for the SUT

Other Notes

* Zeus options:
-b 1048576 : Set cache large file watermark to 1048576 bytes
-t 20000 : Set cache timeout to 20000 seconds
-l 128 : Set listen queue length
-q : Quick mode
* 'chatr +pi L' on zeus executable to set large page size
* Workload data file permissions set to 0755

Test Run Details

Detailed Statistics
Load	Throughput	Class	Target Mix	Actual Mix	Error Percent	Mean Response	Std Dev Response
149	149	0	35.0%	34.8%	0.00%	3.04	3.88
		1	50.0%	50.1%	0.00%	3.50	4.27
		2	14.0%	14.1%	0.00%	7.15	7.48
		3	1.0%	1.0%	0.00%	37.97	36.96
298	298	0	35.0%	35.0%	0.00%	3.03	4.15
		1	50.0%	50.0%	0.00%	3.46	4.43
		2	14.0%	14.0%	0.00%	6.98	7.30
		3	1.0%	1.0%	0.00%	37.74	36.39
447	448	0	35.0%	35.0%	0.01%	4.04	7.24
		1	50.0%	50.0%	0.01%	4.49	7.46
		2	14.0%	14.0%	0.01%	8.43	10.76
		3	1.0%	1.0%	0.00%	42.59	42.11
596	597	0	35.0%	35.0%	0.00%	5.89	12.77
		1	50.0%	50.0%	0.01%	6.39	13.10
		2	14.0%	14.0%	0.00%	11.10	17.50
		3	1.0%	1.0%	0.00%	50.82	52.54
745	746	0	35.0%	35.0%	0.01%	6.15	13.52
		1	50.0%	50.0%	0.01%	6.61	13.72
		2	14.0%	14.0%	0.01%	11.70	18.90
		3	1.0%	1.0%	0.00%	55.20	58.18
894	897	0	35.0%	35.0%	0.00%	7.66	18.26
		1	50.0%	50.0%	0.01%	8.12	18.44
		2	14.0%	14.0%	0.01%	13.82	24.16
		3	1.0%	1.0%	0.00%	63.06	67.86
1043	1044	0	35.0%	35.0%	0.01%	9.04	33.76
		1	50.0%	50.0%	0.01%	9.59	31.62
		2	14.0%	14.0%	0.01%	15.73	39.74
		3	1.0%	1.0%	0.00%	73.84	82.66
1192	1194	0	35.0%	35.0%	0.01%	12.69	65.35
		1	50.0%	50.0%	0.01%	13.25	65.27
		2	14.0%	14.0%	0.00%	20.29	68.56
		3	1.0%	1.0%	0.00%	92.82	125.24
1341	1344	0	35.0%	35.0%	0.01%	13.75	63.19
		1	50.0%	50.0%	0.01%	14.10	62.30
		2	14.0%	14.0%	0.01%	23.61	65.83
		3	1.0%	1.0%	0.01%	133.04	151.64
1490	1493	0	35.0%	35.0%	0.01%	20.07	49.97
		1	50.0%	50.0%	0.01%	20.81	51.33
		2	14.0%	14.0%	0.01%	43.30	68.39
		3	1.0%	1.0%	0.01%	407.15	414.72

Thu Oct 2 8:56:42 PDT 1997

First published at SPEC.org on 21-Oct-1997
