SPECsfs97.v2 Result

Sun Microsystems Inc. :	Sun Enterprise 6500
SPECsfs97.v2 =	25849 Ops/Sec (Overall Response Time = 3.79 msec)

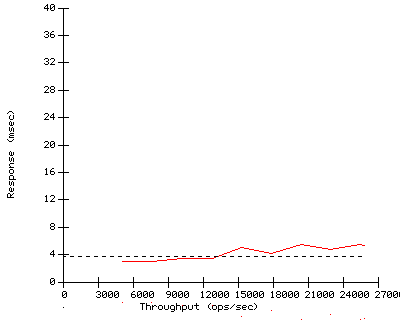

Performance

Throughput (ops/sec)	Response (msec)
2558	2.6
5099	3.0
7584	3.0
10202	3.5
12798	3.5
15301	5.0
17841	4.1
20428	5.5
22905	4.7
25537	5.5
25849	5.4

Configuration

Server Configuration and Availability
Vendor	Sun Microsystems Inc.
Hardware Available	Mar 1998
Software Available	Oct 1998
Date Tested	Sep 1998
SFS License Number	6
Licensee Locations	Palo Alto, CA

CPU, Memory and Power

Model Name Sun Enterprise 6500

Processor 336 MHz UltraSPARC II

# of Processors 18

Primary Cache 16KBI+16KBD on chip

Secondary Cache 4MB(I+D) off chip

Other Cache N/A

UPS N/A

Other Hardware N/A

Memory Size 12 GB

NVRAM Size N/A

NVRAM Type N/A

NVRAM Description N/A

Server Software

OS Name and Version Solaris7_64bit

Other Software N/A

File System UFS

NFS version 2

Server Tuning

Buffer Cache Size Dynamic

# NFS Processes 599

Fileset Size 249.3 GB

Network Subsystem
Network Type	100Mbit Sun FastEthernet
Network Controller Desc.	SunSwift 100baseT f/w SCSI SBus Adapter
Number Networks	16 (N1-N16)
Number Network Controllers	16
Protocol Type	UDP

Switch Type 12 SunSwitch

Bridge Type N/A

Hub Type 4 100baseT hub

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 9

Number of Disks 244

Number of Filesystems 240 (F1-F240)

File System Creation Ops default

File System Config default

Disk Controller On-board SCSI-2

# of Controller Type 1

Number of Disks 4

Disk Type 2GB 7200rpm

File Systems on Disks OS, swap

Special Config Notes

Disk Controller FC SBUS Adapter (FC25/S)/FC Optical Module (FC25/OM)

# of Controller Type 8

Number of Disks 240

Disk Type 2GB 7200rpm

File Systems on Disks F(i+1)-F(i+30), i=0,30,..,210

Special Config Notes SPARCstorage Array 112 each w/ 30 drives

Load Generator (LG) Configuration
Number of Load Generators	48
Number of Processes per LG	10
Biod Max Read Setting	5
Biod Max Write Setting	5

LG Type LG1

LG Model Ultra1-170

Number and Type Processors 1 167MHz UltraSPARC

Memory Size 128MB

Operating System Solaris 2.6

Compiler SC3.0

Compiler Options N/A

Network Type SunSwift 100baseT f/w SCSI SBus Adapter

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1/2/3/4 LG1 N1 (switch) F1,..,F193,F25,..,F217/F2,..,F194,F26,..,F218/F3,..,F195,F27,..,F219/F4,..F196,F28,..,F220 N/A

5/6/7 LG1 N2 (switch) F5,..,F197,F29,..,F221/F6,..,F198,F30,..,F222/F7,..,F199,F31,..,F223 N/A

8/9/10 LG1 N3 (switch) F8,..,F200,F32,..,F224/F9,..,F201,F33,..,F225/F10,..,F202,F34,..,F226 N/A

11/12 LG1 N4 (hub) F11,..,F203,F35,..,F227/F12,..,F204,F36,..,F228 N/A

13/14/15/16 LG1 N5 (switch) F13,..,F205,F37,..,F229/F14,..,F206,F38,..,F230/F15,..,F207,F39,..,F231/F16,..,F208,F40,..,F232 N/A

17/18/19 LG1 N6 (switch) F17,..,F209,F41,..,F233/F18,..,F210,F42,..,F234/F19,..,F211,F43,..,F235 N/A

20/21/22 LG1 N7 (switch) F20,..,F212,F44,..,F236/F21,..,F213,F45,..,F237/F22,..,F214,F46,..,F238 N/A

23/24 LG1 N8 (hub) F23,..,F215,F47,..,F239/F24,..,F216,F48,..,F240 N/A

25/26/27/28 LG1 N9 (switch) F25,..,F217,F1,..,F193/F26,..,F218,F2,..,F194/F27,..,F219,F3,..,F195/F28,..,F220,F4,..F196 N/A

29/30/31 LG1 N10 (switch) F29,..,F221,F5,..,F197/F30,..,F222,F6,..,F198/F31,..,F223,F7,..,F199 N/A

32/33/34 LG1 N11 (switch) F32,..,F224,F8,..,F200/F33,..,F225,F9,..,F201/F34,..,F226,F10,..,F202 N/A

35/36 LG1 N12 (hub) F35,..,F227,F11,..,F203/F36,..,F228,F12,..,F204 N/A

37/38/39/40 LG1 N13 (switch) F37,..,F229,F13,..,F205/F38,..,F230,F14,..,F206/F39,..,F231,F15,..,F207/F40,..,F232,F16,..,F208 N/A

41/42/43 LG1 N14 (switch) F41,..,F233,F17,..,F209/F42,..,F234,F18,..,F210/F43,..,F235,F19,..,F211 N/A

44/45/46 LG1 N15 (switch) F44,..,F236,F20,..,F212/F45,..,F237,F21,..,F213/F46,..,F238,F22,..,F214 N/A

47/48 LG1 N16 (hub) F47,..,F239,F23,..,F215/F48,..,F240,F24,..,F216 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1/2/3/4	LG1	N1 (switch)	F1,..,F193,F25,..,F217/F2,..,F194,F26,..,F218/F3,..,F195,F27,..,F219/F4,..F196,F28,..,F220	N/A
5/6/7	LG1	N2 (switch)	F5,..,F197,F29,..,F221/F6,..,F198,F30,..,F222/F7,..,F199,F31,..,F223	N/A
8/9/10	LG1	N3 (switch)	F8,..,F200,F32,..,F224/F9,..,F201,F33,..,F225/F10,..,F202,F34,..,F226	N/A
11/12	LG1	N4 (hub)	F11,..,F203,F35,..,F227/F12,..,F204,F36,..,F228	N/A
13/14/15/16	LG1	N5 (switch)	F13,..,F205,F37,..,F229/F14,..,F206,F38,..,F230/F15,..,F207,F39,..,F231/F16,..,F208,F40,..,F232	N/A
17/18/19	LG1	N6 (switch)	F17,..,F209,F41,..,F233/F18,..,F210,F42,..,F234/F19,..,F211,F43,..,F235	N/A
20/21/22	LG1	N7 (switch)	F20,..,F212,F44,..,F236/F21,..,F213,F45,..,F237/F22,..,F214,F46,..,F238	N/A
23/24	LG1	N8 (hub)	F23,..,F215,F47,..,F239/F24,..,F216,F48,..,F240	N/A
25/26/27/28	LG1	N9 (switch)	F25,..,F217,F1,..,F193/F26,..,F218,F2,..,F194/F27,..,F219,F3,..,F195/F28,..,F220,F4,..F196	N/A
29/30/31	LG1	N10 (switch)	F29,..,F221,F5,..,F197/F30,..,F222,F6,..,F198/F31,..,F223,F7,..,F199	N/A
32/33/34	LG1	N11 (switch)	F32,..,F224,F8,..,F200/F33,..,F225,F9,..,F201/F34,..,F226,F10,..,F202	N/A
35/36	LG1	N12 (hub)	F35,..,F227,F11,..,F203/F36,..,F228,F12,..,F204	N/A
37/38/39/40	LG1	N13 (switch)	F37,..,F229,F13,..,F205/F38,..,F230,F14,..,F206/F39,..,F231,F15,..,F207/F40,..,F232,F16,..,F208	N/A
41/42/43	LG1	N14 (switch)	F41,..,F233,F17,..,F209/F42,..,F234,F18,..,F210/F43,..,F235,F19,..,F211	N/A
44/45/46	LG1	N15 (switch)	F44,..,F236,F20,..,F212/F45,..,F237,F21,..,F213/F46,..,F238,F22,..,F214	N/A
47/48	LG1	N16 (hub)	F47,..,F239,F23,..,F215/F48,..,F240,F24,..,F216	N/A

Other Notes

IGNORE_KERNEL_PREEMPTION=1
ncsize=2097152
bufhwm=2097152
SSA Fast_write enabled
Only 100baseT ports of SunSwitch are used

Mon Oct 26 15:27:19 1998

First published at SPEC.org on 19-Nov-1998

LG Type	LG1
LG Model	Ultra1-170
Number and Type Processors	1 167MHz UltraSPARC
Memory Size	128MB
Operating System	Solaris 2.6
Compiler	SC3.0
Compiler Options	N/A
Network Type	SunSwift 100baseT f/w SCSI SBus Adapter
